Digital KWH Meter Watt Meter Ampere Volt Frequensi

Note: Produk ini versi 20A tanpa CT (Current Transformer)

Untuk versi 100A dengan trafo CT cek link dibawah
https://tokopedia.link/4hiJhgFe2W

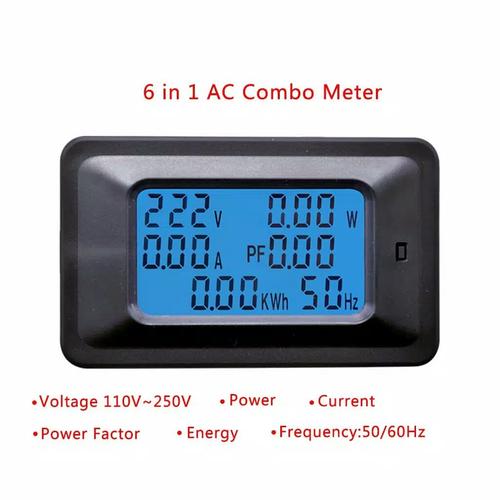

6 in 1 Combo meter, bisa menampilkan secara bersamaan :
1. KWh meter
2. Watt Meter
3. Volt Meter
4. Ampere Meter
5. Power Factor
6. Frekuensi

Features:
Energy 5-digits, 0.01~99999KWH.
Compatible frequency 50/60HZ.
Can be connected with the test of eletrical power, voltage, current and so on.
Backlight control, short press to turn on/off backlight.
Clear energy reading, press and hold down the key to clear the reading of kWh.

Specifications:
Model: P06S-20
Name: 6 in 1 Voltage Meter
Max. Power: 5000W
Rated Power: 4400W
Standby Power: ＜1W
Max. Current: 20A
Rated Power: 20A
Voltage: 110~250V AC
Voltage Accuracy: ±1%
Current Accuracy: ±2%
Power Accuracy: ±2%
Size: Approx. 8.5 x 4.7 x 2.8cm / 3.35 x 1.85 x 1.1inch
Panel Size: Approx. 5.45 x 9cm / 2.15 x 3.54inch
Quantity: 1pc
Weight: 79g

Instructions of Button
1.Click button to turn on or off background light.
2.Hold the button for 3 seconds to get overload power setting.
2.1 Go to the page of setting overload power(factory default is 4.4KW)
2.2 Flicker at highest position; click once to add 1; hold the button for 2 seconds for displacement; the maximum set value is 99.9KW.
2.3No operation on the button for 5 seconds, it will exit and save data.
3.Hold the button for 5 seconds, the system will reset, accumulated electric quantity is cleared, and the overload power is reset to default.
