Kamera Lubang Jarum Mini 4G Cctv P2P Onvif Audio Diy 3G 4G Sim Modul Kamera Papan Chip 4G Kamera Ip Nirkabel P2P Camhipro

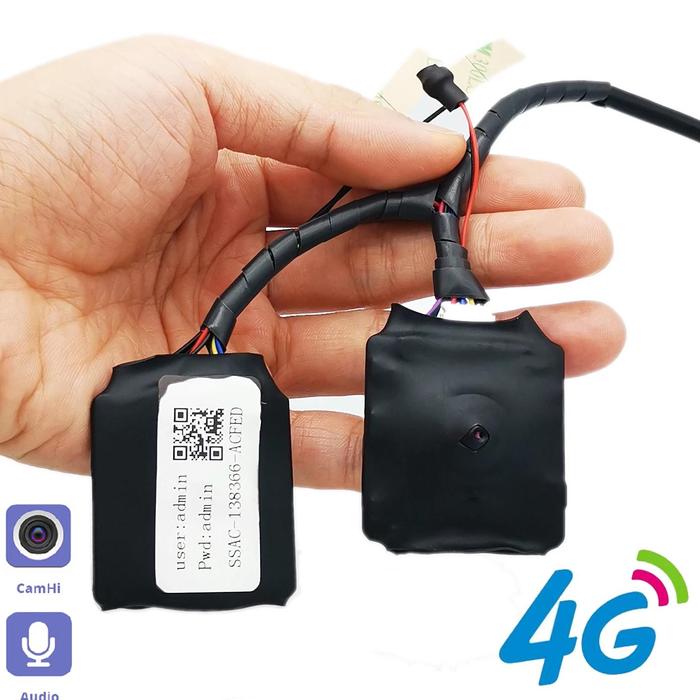

Mini 4G Pinhole Camera Cctv P2P Onvif Audio Diy 3G 4G Sim Camera Module Chip Board 4G Wireless Ip Camera P2P For Camhipro



Note:
This 4G Camera Only Supports The European 4G Band, Not In The Americas And Asia
Brazil
4G Europe
Support
Israel
4G Europe
Support
Kuwait
4G Europe
Support
The British
4G Europe
Support
Russia
4G Europe
Support
Italy
4G Europe
Support
Poland
4G Europe
Support
Ukraine
4G Europe
Support
Thailand
4G Europe
Support
Finland
4G Europe
Support
Spain
4G Europe
Support
Bulgaria
4G Europe
Support
Canada
4G Europe
Support
Estonia
4G Europe
Support
Tant Warning:
If You Want To Use This 3G 4G Ip Camera,
You Must Check Your Sim Card Frequency Range Must Be In Below Listed Range.
We Will Not Agree Any Dispute For Your Own Reason For Your Wrong Order.
3G Standard: Wcdma
Frequency Range: B1(2100Mhz), B8(900Mhz)
4G Standard: Fdd-Lte
Frequency Range: B1(2100Mhz), B3(1800Mhz), B7(2600Mhz), B8(900Mhz), B20(800Mhz)
(1)This 3G 4G Ip Camera Mostly For Those Environment Place Not Have Internet But Have Sim Mobile Signal,
You Have To Put A Sim Card Into Camera And Connect Internet By Your Sim Card.
The Camera Does Not Support Router Internet Connection !
(2)This 3G 4G Ip Camera Connection Way: Insert Your Sim Card Into Camera, Then Power On, Connect Sim Card Internet.
No Need To Connect Network Lan Cable ! No Need To Setup Wifi !
(3)The 3G 4G Ip Camera Does Not Support Local Pc Clients .
It Supports Mobile Phone App (Camhi) And A Remote Clients Cms.
(4)The 3G 4G Ip Camera Does Not Support Cloud Ftp Storage !


Our Product Is Support 3G/4G Wireless Ap Connect, Nsupport Wired Connect(Rj45 Port Work),
4G Sim Card Connection
--You Must Check Your Sim Card Frequency Range Must Be In Below Listed Range.




How To Quickly Set Up 3G/4G
First Of All , Download App "Camhi" From The Iphone App Store Or Google Play Store. Or Scan The Qr e
If You Choose The Camera Has 3G/4G. Then When The Camera Leaves The Factory. The Default Connection To The 3G/4G Module (Signal Mifi-Xx) Has Been Set.
Note:If You Use The Reset Button. Then You Need To Re-Bind The Camera To Mifi-Xx
You Only Need A Few Simple Steps.
Insert The Sim Card Into The Camera. Connect The Power Adapter , Wait 10-20S, Camera Will Be Ready.
Then Open Your Phone Wlan Setting , You Will Find "Mifi-Xxx" And Select To Connect, The Default Password Is 1234567890
When Your Phone Is Connected To Mifi-Xx. Then Open The App "Camhi". Select "Add Camera."
Because Your Phone Is Connected To Mifi-Xx. So You Can Choose "Search Camera From Lan". Or Directly Scan The Qr e Of The Camera.
Then You Can See Your Camera Online. You Can Control The Camera And Watch Videos From Your Phone.
Note:
If View The 3G/4G Camera Is Offline, Please Check The Sim Card”.
Use The Mobile Phone Or Pc To Connect The Wifi €�mifi_3F41€�,The Wifi Password Is €�1234567890€�, You Can Find The Wifi When The
Camera Starts Working. Access €�192.168.100.1€� Through The Browser, The Page Password
Is €�admin”, You Can Check The Sim Card Information On This Page.
If Your Camera Display Is Offline, Please Note The Following:
1.Damaged Card Or Wrong Installation Direction When Prompted "
No Sim Card Or Sim Card Invalid! ", As Shown Below:
2.Frequency Not Supported Or Sim Card Arrears When Prompted "No Service" Or "Limited Service", As Shown Below 1):
3.Make Sure 3G/4G Signal Strength Is Enough, As Shown Below 2):


Specifications:
Ai Functions: Motion Detection
Shell Material: Plastic
Color Night Vision: No
Operating Temperature: -10°-60°
Ip Rating: Other
App Name: Other
Rechargeable Battery Capability: Other
Rechargeable Battery: None
Scene: Indoor
Movement Range(Tilt): Other
Movement Range(Pan): Other
Digital Zoom: None
Optical Zoom: None
Megapixels: 5Mp
Tf Card: None
Power Supply: Normal
Storage: None
Installation: Side
Color: Black
Is_Customized: Yes
Audio Output: 1Ch Rca
Minimum Illumination(Lux): 0.001
Viewing Angle : 90°
Video Compression Format: H.264,H.265
Ir Distance(M): Na
Dimensions (L X W X D)(Mm): 38*38Mm
Power Supply(V): Dc12V
Alarm Action: Ftp Photo,Email Photo,Local Alarm
Power Consumption(W): 4W
Supported Mobile Systems: Android,Ios
Sensor Brand: Sony
Special Features: Vandal-Proof
Sensor: Cmos
Model Number: Hq-4G10
Supported Operating Systems: Windows 8,Windows 7,Mac Os,Windows Xp
Lens (Mm): 3.7Mm
Connectivity: 4G
High Definition: 5.0 Megapixels
Style: Mini Camera
Brand Name: Hqcam
gin: Mainland China
Certification: Ce
Smart Home Platform: Other
