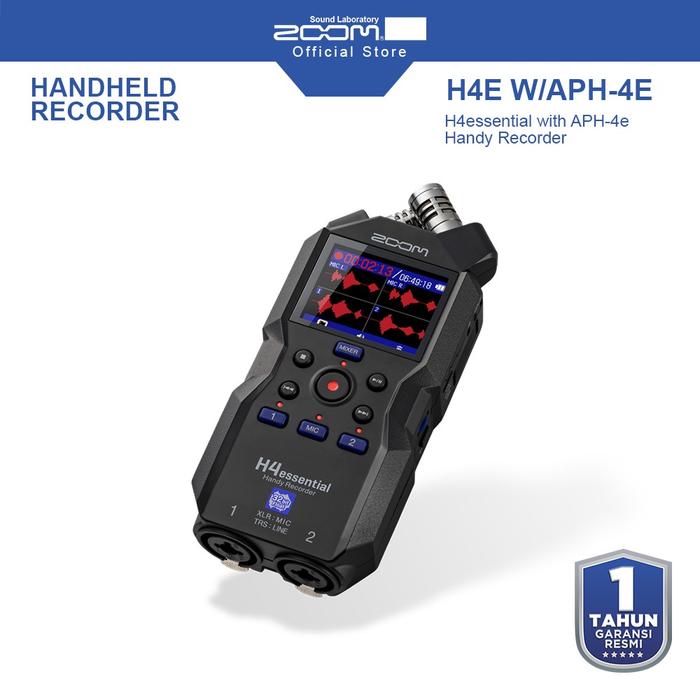

Zoom H4essential with APH-4e Handycorder

Zoom H4essential with APH-4e Handy Recorder


Four Tracks More Options
With four tracks 32-bit float recording advanced X/Y mics and 2 XLR/TRS inputs creators have more ways to record their music podcasts and audio-for-video


Features:
•H4essential
•4-track 32-bit float recorder with Dual A/D Converters
•Clip-free recording with no need to set gain
•Records up to 96kHZ sample rate
•Color LCD Screen
•130 dB SPL XY Mic
•2 XLR/TRS combo inputs with locking connector
•35mm mic/line input for lavalier mics and line level sources
•Built-in mixer to adjust each track’s audio level
•Built-in speaker for quick reference playback
•35mm line output for headphones or to connect to a camera
•Voice Guidance accessibility for the visually impaired
•32-Bit Float audio interface for PC Mac iOS and Android devices via USB-C port
•Use as an interface and record to SD card simultaneously
•Using the BTA-1* Bluetooth Adapter sync with wireless timecode devices via bluetooth
•Use the BTA-1* Bluetooth Adapter to pair with the H4essential Control App for iOS
•Record to SD cads up to 1TB
•10 hours of battery life on AA battery (2x) or USB-C Bus Power
*Please note: BTA-1 Adapter not included


KONFIGURASI KIT DAN KELENGKAPAN:
- H4E
- Windprotection
- Bag
- Adapter
- Cable


Specs:
•INPUT AND OUTPUT CHANNELS
Inputs
-Built-in mic (stereo) : 1
-XLR/TRS : 2
-MIC/LINE IN 1
Outputs
-Headphones : 1
-Built-in speaker (mono) : 1


•RECORDER
-Maximum simultaneous recording tracks 4
-Maximum simultaneous playback tracks 4
-Recording formats : WAV 441/48/96 kHz 32-bit float mono/stereo BWF and iXML formats supported
-Recording media : 4-32GB cards compatible with the microSDHC specification 64GB–1TB cards compatible with the microSDXC specification


•DISPLAY
-20-inch full-color LCD : 360 x 240


•USB
-Connector : USB Type-C : Use a USB cable that supports data transfer
-Audio Interface : USB 20 High Speed
Input and output channels : 4 in / 2 out (Multi) 2 in / 2 out (Stereo)
Sampling frequency : 441/48/96 kHz (AIF only) 441/48 kHz (AIF + onboard recording)
Bit depth : 24-bit 32-bit float
-File transfer : USB 20 High Speed


•REMOTE
-Dedicated wireless adapter : ZOOM BTA-1


•POWER
-2 AA batteries : Alkaline lithium or rechargeable NiMH batteries
-AC Adapter : ZOOM AD-17：DC 5V / 1 A : USB bus power is supported
-Lithium batteries : About 19 hours
48 kHz/32-bit float phantom power off no headphones no remote display power saving on display brightness at Medium
-These values are approximate
-Continuous battery operation times were determined using in-house testing methods They will vary greatly according to use conditions


•Power consumption : 3 W maximum
•Dimensions : 669 mm (W) × 1561 mm (D) × 380　mm (H)
•Weight (including batteries) : 243 g
•Note: 0 dBu = 0775 Vrms
