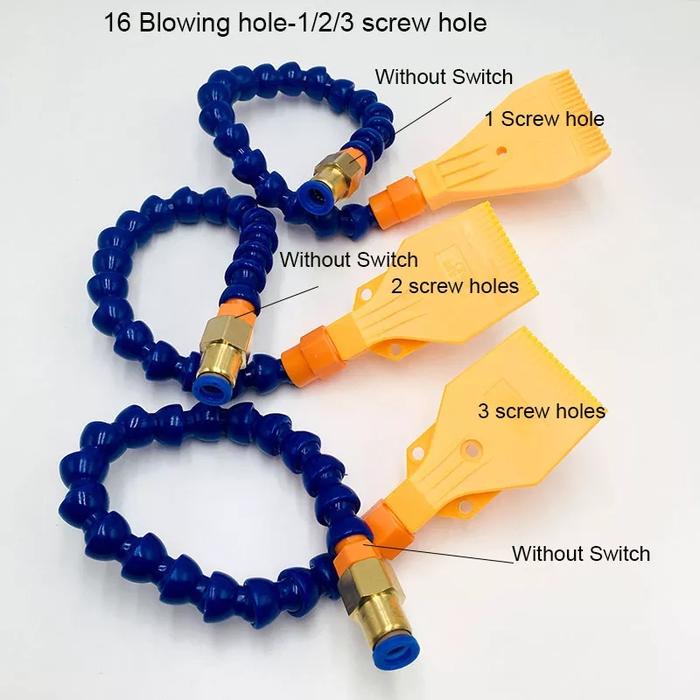

Wind Jet Compressed Air Nozzle With Flexible Pipe 1/4" BSPT - Orange, 2 Screw Holes
Rp127.500
Pilih warna: Orange
Pilih ukuran: 2 Screw Holes
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Airless Spray Gun Tip Nozzle
WindJet Compressed Air Blowing Flat Jet Nozzle With Flexible Connector 1/4" BSPT + Fittings Pneumatic
Wind Jet Nozzles for Use with Compressed Air
discharged through 16 precision orifices that ensure uniform distribution and spray pattern integrity.
Recessed orifices on the ABS and PPS models protect against external damage and also provide an air escape should the nozzle accidentally be placed against a flat surface.
A convenient mounting hole on the ABS model ensures correct positioning on the header or manifold for fixed applications.
Wind jet nozzle, Air nozzles can help you improve performance, reduce noise and save on air costs in drying, cooling and conveying applications.
Specifications:
Thread size: male thread, 1/4 inch BSPT.
Spray pattern: flat fan,
Material: ABS
Main Color: yellow;
Product Name: Flat Windjet Nozzle
Weight: 18g;
Dimension: 91 x 47 x 16mm / 3.6 inch x 1.9 inch x 0.6 inch (L*Max.W*Max.T)
Thread Dia.: 13mm / 1/4BSP;
Head Size: 47 x 6.6mm / 1.9 inch x 0.26 inch (W*T)
Mounting Hole Dia.: 4.8mm/0.19 inch
Package Content:
1 x Windjet Flat Jet Nozzle
1 x Flexible Conector 1/4" Tanpa Switch
1 x Fittings Pneumatic 1/4" x Hose 8 mm
Wind Jet Nozzles for Use with Compressed Air
discharged through 16 precision orifices that ensure uniform distribution and spray pattern integrity.
Recessed orifices on the ABS and PPS models protect against external damage and also provide an air escape should the nozzle accidentally be placed against a flat surface.
A convenient mounting hole on the ABS model ensures correct positioning on the header or manifold for fixed applications.
Wind jet nozzle, Air nozzles can help you improve performance, reduce noise and save on air costs in drying, cooling and conveying applications.
Specifications:
Thread size: male thread, 1/4 inch BSPT.
Spray pattern: flat fan,
Material: ABS
Main Color: yellow;
Product Name: Flat Windjet Nozzle
Weight: 18g;
Dimension: 91 x 47 x 16mm / 3.6 inch x 1.9 inch x 0.6 inch (L*Max.W*Max.T)
Thread Dia.: 13mm / 1/4BSP;
Head Size: 47 x 6.6mm / 1.9 inch x 0.26 inch (W*T)
Mounting Hole Dia.: 4.8mm/0.19 inch
Package Content:
1 x Windjet Flat Jet Nozzle
1 x Flexible Conector 1/4" Tanpa Switch
1 x Fittings Pneumatic 1/4" x Hose 8 mm
