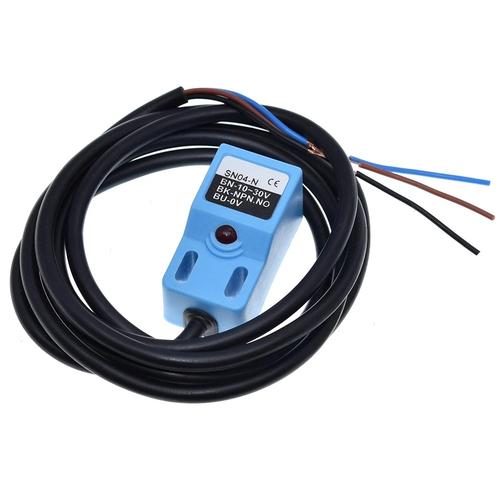

Metal Proximity Sensor Inductive Detector Deteksi Logam SN04-N
Rp16.960
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Sensor Module
Sensor yang digunakan untuk mendeteksi Logam (Proximity) yang dilengkapi kabel 3 warna dan lampu LED apabila sensor mendektesi logam (LED mati apabila sensor tidak mendeteksi apapun)
Spesifikasi:
- Model: SN04-N
- Wire Type: 3 Wire Type (Brown, Black, Blue)
- Output Type: NPN, NO
- Sensing Distance: +-4mm
- Working Voltage:10-30V DC
- Response Frequency:500Hz max
- Indicator:Red LED
- Size:36 x 18 x 18mm / 1.4" x 0.7" x 0.7" (L*W*H)
- Cable Length (Approx.):110cm / 43.3"
- Hole Size:0.9 x 0.4cm / 0.35" x 0.2" (L*W)
- Extenal Material:ABS Resin
Konfigurasi kabel:
- Kabel Coklat: VCC+
- Kabel Biru: GND-
- Kabel Hitam: OUT (Sinyal)
Spesifikasi:
- Model: SN04-N
- Wire Type: 3 Wire Type (Brown, Black, Blue)
- Output Type: NPN, NO
- Sensing Distance: +-4mm
- Working Voltage:10-30V DC
- Response Frequency:500Hz max
- Indicator:Red LED
- Size:36 x 18 x 18mm / 1.4" x 0.7" x 0.7" (L*W*H)
- Cable Length (Approx.):110cm / 43.3"
- Hole Size:0.9 x 0.4cm / 0.35" x 0.2" (L*W)
- Extenal Material:ABS Resin
Konfigurasi kabel:
- Kabel Coklat: VCC+
- Kabel Biru: GND-
- Kabel Hitam: OUT (Sinyal)
