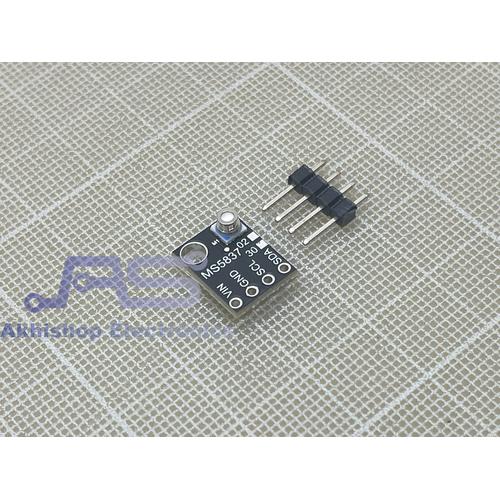

GY-MS5837 30BA HIGH PRECISION WATERPROOF PRESSURE SENSOR MODULE

SKU : A17001 MS5837 is a new generation of high resolution pressure sensor with I2C bus interface. Its water depth resolution is 2 mm. It is suitable for depth measurement system. Overpressure:50 bar Sensor Type:Digital Pressure and Height Sensor Module Type Absolute Pressure Output/span:24-bit ADC The sensor module consists of a high linear pressure sensor and an ultra-low power 24 bit_ADC with internal factory calibration coefficient. Accurate 24-digit pressure and temperature values and different operating modes are provided. Users can configure conversion speed and current consumption according to their needs. High resolution temperature output enables you to achieve the functions of depth measurement system and thermometer without additional sensors. MS5837 can connect almost any microcontroller. The communication protocol is simple, and there is no need to program the internal registers in the device. Gel protection and antimagnetic stainless steel cap can ensure that the sensor module is waterproof. Advantage Ceramic-metal package:3.3 x 3.3 x 2.75 mm 30BA：0--------30bar High resolution module, 0.2 mbar Fast conversion up to 0.5 ms Low power, 0.6 mu A (standby power lt; 0.1 mu A at 25 degree C) Integrated Digital Pressure Sensor (24-bit_ADC) Power supply voltage: 3 to 5V Temperature range: 20 to + 85 degrees C I2C interface No external components (internal oscillator) Excellent long-term stability It can be fully sealed and suitable for outdoor equipment Sealing design, suitable for 1.8 x 0.8 mm O ring
