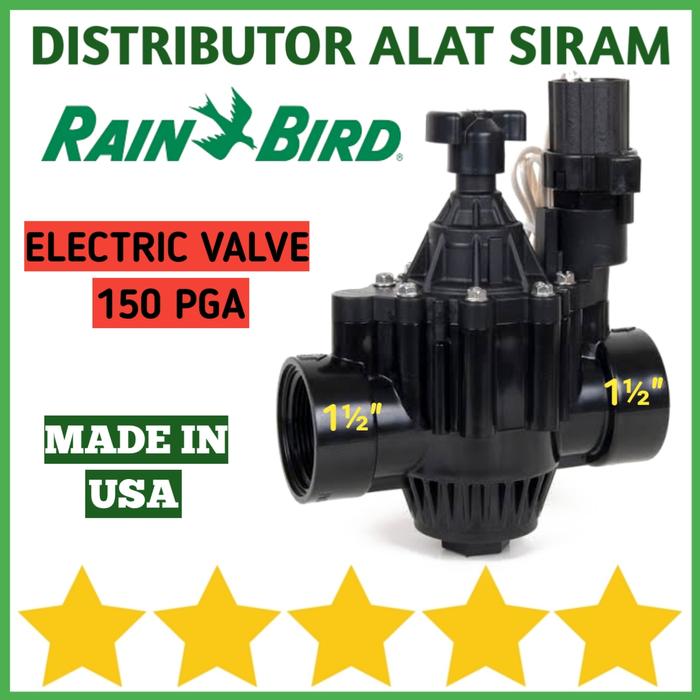

SELENOID ELECTRIC VALVE 150 PGA RAIN BIRD 1.5 INCH RAINBIRD USA
Rp1.999.900
- Kondisi: Baru
- Waktu Preorder: 1 Hari
- Min. Pemesanan: 1 Buah
- Etalase: RAIN BIRD
Selenoid valve 150PGA 1 1/2 inch original RAIN BIRD made in USA
Spesifikasi
Valve Size1.5 inValve TypeInlineMaterialPlasticValve Inlet/Outlet ConfigurationNPT Female x NPT Female ThreadedValve OptionsMulti-drive Screws, Non-potableValve SeriesPGAOperating TemperatureTemperature: Up to 110° F (43° C)Dimensions7 1/4" x 5 1/2" x 3 1/4" (18,4 cm) x (14,0 cm) x (8,3 cm)Electrical Specifications
24 VAC 50/60 Hz (cycles per second) solenoid
Inrush current: 0.41A (9.9VA)
Holding current: 0.14A (3.43VA)
Coil resistance: 30-39 Ohms
Flow Range
Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
Operating Pressure15 to 150 psi (1,0 to 10,4 bar)
Spesifikasi
Valve Size1.5 inValve TypeInlineMaterialPlasticValve Inlet/Outlet ConfigurationNPT Female x NPT Female ThreadedValve OptionsMulti-drive Screws, Non-potableValve SeriesPGAOperating TemperatureTemperature: Up to 110° F (43° C)Dimensions7 1/4" x 5 1/2" x 3 1/4" (18,4 cm) x (14,0 cm) x (8,3 cm)Electrical Specifications
24 VAC 50/60 Hz (cycles per second) solenoid
Inrush current: 0.41A (9.9VA)
Holding current: 0.14A (3.43VA)
Coil resistance: 30-39 Ohms
Flow Range
Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
Operating Pressure15 to 150 psi (1,0 to 10,4 bar)
