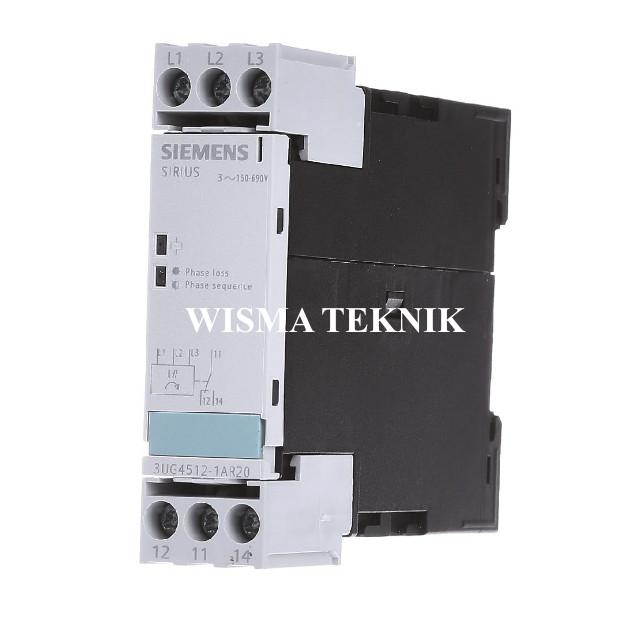

Module Voltage Monitoring Relay SIEMENS 3UG4512-1AR20

Module Voltage Monitoring Relay SIEMENS 3UG4512-1AR20 Module voltage monitoring relay Mounting DIN OUT1 type SPDT Manufacturer SIEMENS Module type voltage monitoring relay Controlled parameter phase asymmetry, phase sequence, phase failure Mounting DIN Output 1 type SPDT Operating temperature -20...65°C Output 1 electrical parameters 250VAC/3A Leads screw terminals IP rating IP20 Body dimensions 22.5 x 110 x 91mm Controlled parameter range 3 x 160...690V AC Voltage between phases (for three phase system) 3 x 160...690V AC Power supply from tested wiring system Type ini sudah discontinue diganti dengan type 3ug5512-1ar20 ini Linknya :
