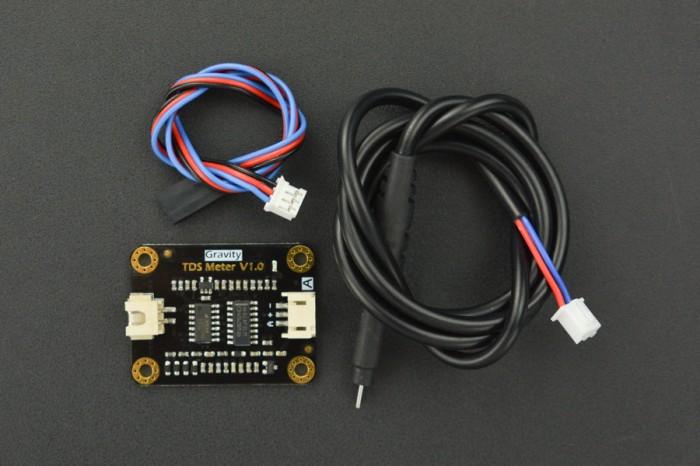

TDS SENSOR METER V1.0 SENSOR FOR ARDUINO UNO R3 PENGUKUR KUALITAS AIR

Rp22.500

Pilih ukuran: 3 ukuran

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: SENSOR

ADA VARIAN

Silahkan cek Varian sesuai kebutuhan
1. TDS CHN
2. TDS DFRobot
3. Probe TDS

DETAIL Produk DFRobot bisa di cek di situs DFRobot

Features
1. Wide voltage operation: 3.3~5.5V
2. 0~2.3V analog signal output, compatible with 5V, 3.3V two control systems
3. The excitation source is an AC signal, effectively preventing probe polarization
4. Waterproof probe for long-term immersion in water
5. Arduino compatible, easy to connect, plug and play, no soldering required

Technical specifications
Signal adapter board:
Input voltage: 3.3~5.5V
Output signal: 0~2.3V
Working current: 3~6mA
TDS measurement range: 0~1000ppm
TDS measurement accuracy: ±10% F.S. (25°C)
Size: 42*32mm
Module interface: XH2.54-3P
Electrode interface: XH2.54-2P

TDS probe:
Number of probes: 2
Overall length: 83cm
Connection interface: XH2.54-2P
Color: White
Other: Waterproof probe
