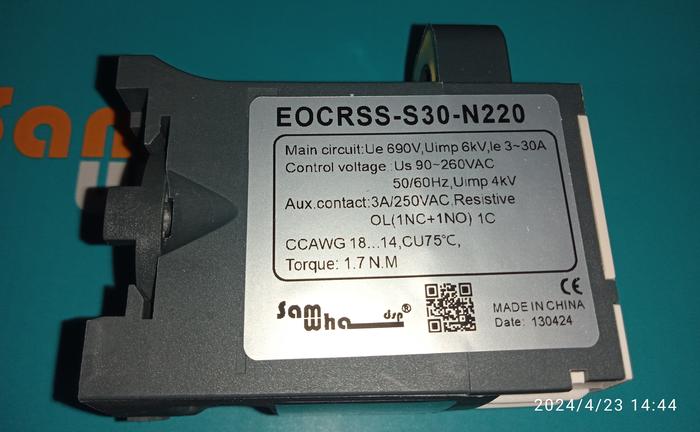

EOCRSS 220 SAMWHA (STANDAR TYPE) Electronic Overload Relay Motor Protection - 3-30A
Rp335.500
Pilih ukuran: 3-30A
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: MCB
COIL 180-240 VAC
Features
■ Compact Design
■ Overload / Phase Loss / Locked Rotor protection
■ Independently Adjustable Starting Trip Delay &
Operating Time
■ PWR & Trip Indication LED
■ Manual / Electric Reset
■ MCU(Microprocessor Control Unit) Based
■ (No Volt Release / Fail-safe Operation)→N Type
■ Low Energy Consumption
Used for
- Low Voltage Induced Electromotor (600V Level) Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protetcion
Protective Item Operating (Trip) Time
Over-Current = O-TIME
Phase Loss = O-TIME
Locked Rotor = D-TIME+O-TIME
LED
Ammeter Function:
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
Run / Operation Indicator:
Relay Trip: Orange LED
Power / normal operating status: Green LED
Manual / Electric Reset
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
Set
After the installation is complete the settings as follows.
Set knob: D-TIME(Delay Time) Set two to three seconds longer than the motor starting time.
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current
TEST Instruction
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
LED Indication
Features
■ Compact Design
■ Overload / Phase Loss / Locked Rotor protection
■ Independently Adjustable Starting Trip Delay &
Operating Time
■ PWR & Trip Indication LED
■ Manual / Electric Reset
■ MCU(Microprocessor Control Unit) Based
■ (No Volt Release / Fail-safe Operation)→N Type
■ Low Energy Consumption
Used for
- Low Voltage Induced Electromotor (600V Level) Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protetcion
Protective Item Operating (Trip) Time
Over-Current = O-TIME
Phase Loss = O-TIME
Locked Rotor = D-TIME+O-TIME
LED
Ammeter Function:
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
Run / Operation Indicator:
Relay Trip: Orange LED
Power / normal operating status: Green LED
Manual / Electric Reset
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
Set
After the installation is complete the settings as follows.
Set knob: D-TIME(Delay Time) Set two to three seconds longer than the motor starting time.
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current
TEST Instruction
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
LED Indication
