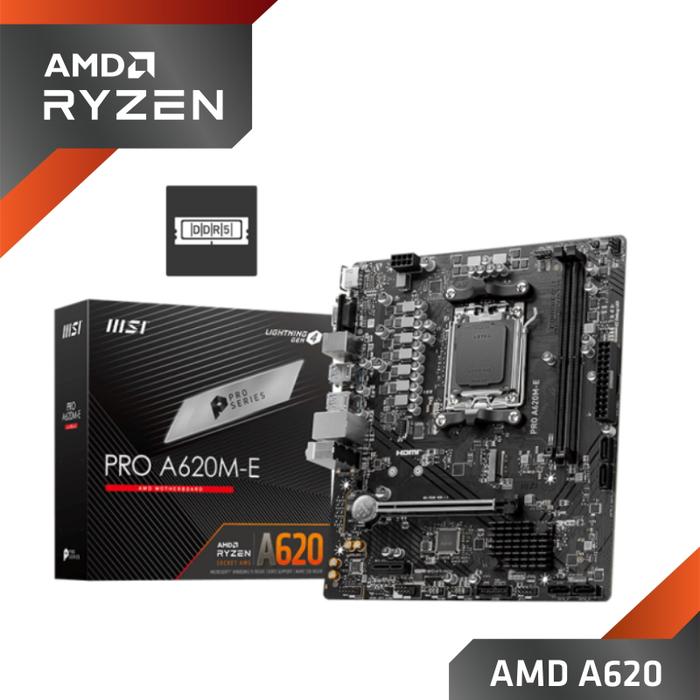

MSI PRO A620M-E | Motherboard AMD A620 Ryzen AM5 Micro ATX

:

CHIPSET
- AMD A620

CPU SUPPORT
- Supports AMD Ryzen 7000 Series Desktop Processors
- Socket AM5

MEMORY
- 2x DDR5, Maximum Memory Capacity 96GB
- Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports AMD EXPO

ONBOARD GRAPHICS
- 1x HDMI
- 1x VGA

EXPANSION SLOT
- 1x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE
- 1x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G

LAN
- Realtek RTL8111H Gigabit LAN

AUDIO
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio

LED FEATURE
- 4x EZ Debug LED

OPERATING SYSTEM
- Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION
- mATX
- 211mmx243.84mm

:
https://www.msi.com/Motherboard/PRO-A620M-E/Specification
