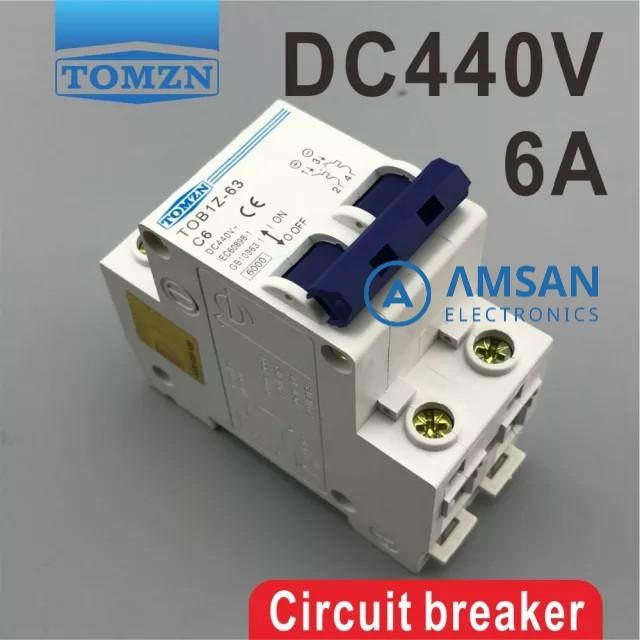

MCB DC 2P 50A 10A 6A 63A 16A TOMZN DC 440V TOB1Z-63 C6 C16 C63 C10 C50 - 6A

TOBIZ-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage 220V

and 440V. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and

electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In

present China, our products in the case grade rating voltage is highest compared to the same products. Products

according IEC60898-1, GB14048.2 standard.

Characteristic

TOBIZ-63 DC circuit breaker is made up of case, operation mechanism, thermal overloading trip, electromagnetic trip

contact system, arc system etc. It has overloading and short circuit protection, unique-design structure and strong

permanent magnetism arc system make the product has 6KA short circuit capability. Long mechanical life over 20000

times and beautiful shape. It can be connected with din rail named TH35-7.5 standard stainless type and has the below

personality: the handle is designed on the top of the front, people will feel safe and comfortable when operating. When

connecting, pay attention to "+, -" poles; The power goes in from the top and comes out from the underside which is

applied with power entrance character. Convenient for installation and saving cables. It is used for 440V circuit 3 poles

circuit breaker to connect front loop for two poles serial connection.
