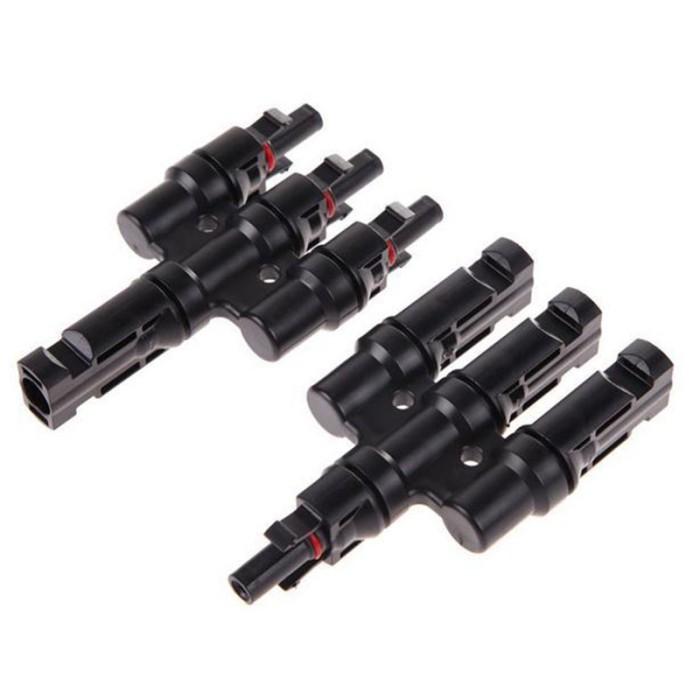

. Mc4 T-Type 3 Branch Parallel Connector Solar Panel Adapter -

Selamat Datang di Toko Kami.

- Kami Menjual Produk-produk Import
- Produk Dikirim dari Luar Negeri.
- Estimasi Kiriman 5-15 Hari. Mohon Menunggu

Specification:







Name



MC4



T-type 3 branch



parallel connector





Color



Black





Rated voltage



TUV1000VDC/UL600VDC





Maximum withstand voltage



DC1000V





maximum working current



30A





Security level



CIass II





Waterproof rating




IP65





Adapter cable



2.5mm
2
-6.0mm
2
/14AWG-10AWG





Connector insulation material



PPO





Test voltage



DC8KV 1min





Terminal size



4.0mm





Terminal material



Copper tin plating





Insulation material



PPO





Operating temperature range



-40
C~ +90
C





Flame retardant rating



UL94V-0







Feature:



This brancher has the ability to resist UV and high level of contact protection, in line with the harsh outdoor conditions


Package Included:

1 x


T-type 3 branch
parallel
MRSS-1443647

Silahkan diorder.. :)
