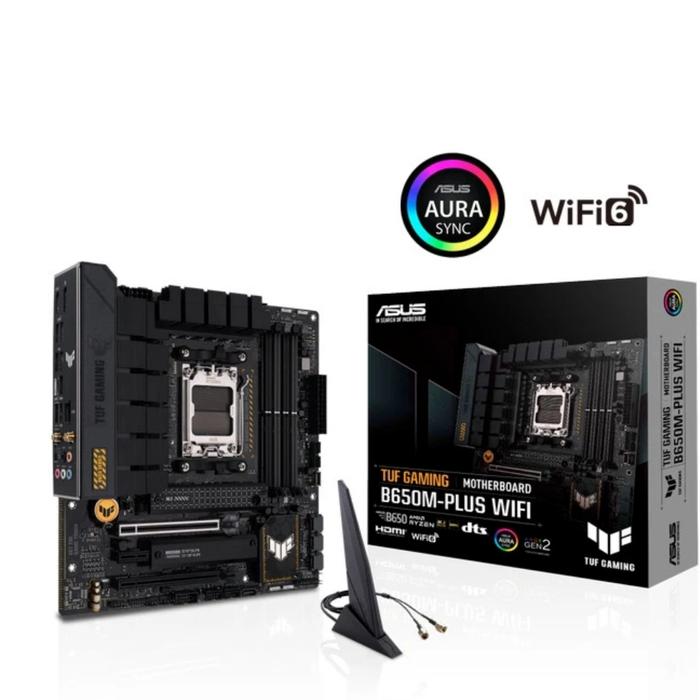

Motherboard ASUS TUF GAMING B650M PLUS WIFI DDR5 AM5 90MB1BF0-M0UAY0

Motherboard ASUS TUF GAMING B650M PLUS WIFI 90MB1BF0-M0UAY0

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMIport
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button

Rear USB (Total 8 ports) :
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Wireless & Bluetooth : Wi-Fi 6
Graphics
1 x DisplayPort
1 x HDMI port
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features

CPU : AMD Socket AM5 for AMD Ryzen 7000 Series
Desktop Processors*
Chipset : AMD B650

Memory :
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC) 5600/5400/ 5200/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

Ethernet : 1 x Realtek 2.5Gb EthernetTUF LANGuard
Storage :
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

AMD Ryzen 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot
1 x PCIe 4.0/3.0 x16 slot

Garansi 3Y by ASUS
