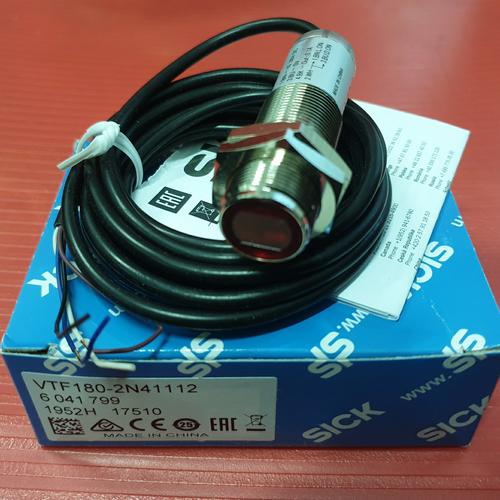

SICK Photoelectric Proximity Sensor Background Blanking VTF180-2N41112

SICK
Photoelectric Proximity Sensor, Background Blanking
Type : VTF180-2N41112


Sensor/ detection principle : Photoelectric proximity sensor, Background blanking
Dimensions (W x H x D) : 18 mm x 18 mm x 62.5 mm
Housing design (light emission) : Cylindrical
Housing length : 62.5 mm
Thread diameter (housing) : M18 x 1
Optical axis : Axial
Sensing range max. : 1 mm ... 140 mm 1)
Sensing range : 1 mm ... 100 mm 1)
Focus : 2)
Type of light : Visible red light
Light source : LED 3)
Light spot size (distance) : Ø 8 mm (100 mm)
Wave length : 645 nm
Adjustment : Potentiometer, 270° (Sensing range)
Supply voltage : 10 V DC ... 30 V DC 1)
Ripple : ± 10 % 2)
Current consumption : 30 mA 3)
Switching output : NPN 4)
Switching mode : Light/dark switching 4)
Switching mode selector : Selectable via L/D control cable
Signal voltage NPN HIGH/LOW : Approx. VS / < 1.8 V
Output current Imax. : ≤ 100 mA
Response time : ≤ 0.5 ms 5)
Switching frequency : 1,000 Hz 6)
Connection type : Cable, 4-wire, 2 m 7)
Cable material : PVC
Conductor cross-section : 0.18 mm²
Cable diameterØ 3.8 mm

NB : Untuk keterangan lebih lanjut dan produk produk lainnya, silahkan hubungi kami di 0878.5337.1181
