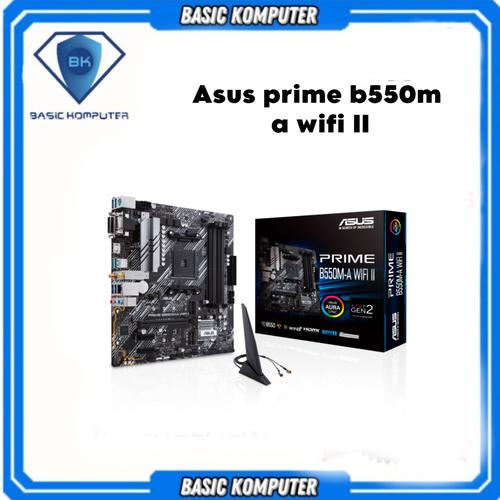

Motherboard Asus prime b550m a wifi II ( AM4 / B550 / DDR4 )

Spesifikasi :

Model
Brand ASUS
Model PRIME B550M-A WIFI II
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported ECC memory (ECC mode) support varies by CPU
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*
PCI Express x1 2 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 AMD Ryzen 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channels 7.1 Channels*
Onboard LAN
LAN Chipset Realtek 1Gb Ethernet
Max LAN Speed 10/100/1000Mbps
Wireless LAN Wi-Fi 6
802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2
Rear Panel Ports
Back I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support
