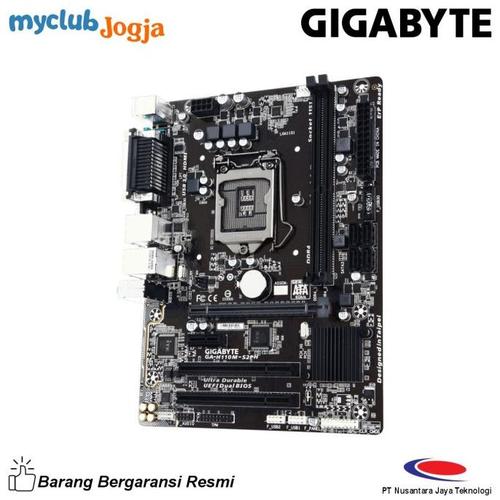

Gigabyte Ga H110M S2Ph Motherboard Intel H110 Lga 1151 Ddr4 Cro Atx

Silahkan baca deskripsi sebelum membeli.

Garansi Resmi NJT, 3 Tahun.

Prosesor
Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
* For 7th Generation Intel Core processors support need to update the latest BIOS.
L3 cache varies with CPU

Chipset
Intel H110 Express Chipset

Memori
2x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules

Kartu Grafis Terintegrasi
Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 1024 MB

Audio
8-Channel Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN

Slot Tambahan
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots

Chipset:
4 x SATA 6Gb/s connectors

Konektor I/O Internal
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Konektor Panel Belakang
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x parallel port
1 x serial port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port

Pengontrol I/O
iTE I/O Controller Chip

Pengawasan Hardware
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Fitur Unik
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup

System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install
Support for Smart Switch
Paket Sofware
Norton Internet Security (OEM version)
cFosSpeed

Sistem Operasi
Windows 10 64-bit (for 7th Generation Intel Processors)
Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)

Form Factor
