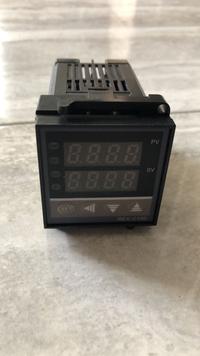

RKC REX-C100 REX digital PID OUT SSR Temperature Controller kit

STOK SAAT INI SEPERTI GAMBAR NO. 1 DAN 2

REX-C100 220V Digital PID Temperature Controller Kit

Features :

REX-C100 Temperature Controller Kit

Brand : RKC
Measuring accuracy : 0.5%FS
Cold-end compensation tolerance : 2 can be modified by software in 0~50
Resolution : 14 bit
Sampling cycle : 0.5 Sec

Power : AC 220V 50/60HZ

Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by : LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output : contact capacity 250V AC 3A (resistive load)
Alarm function output : 2 way
Proportional band (P) : 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 400
Insulation resistance : >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption < 10 VA
Service environment : 0~50
Environment with no corrosive gas 30~85% RH

Package included :
1 x PID Temperature Controller
