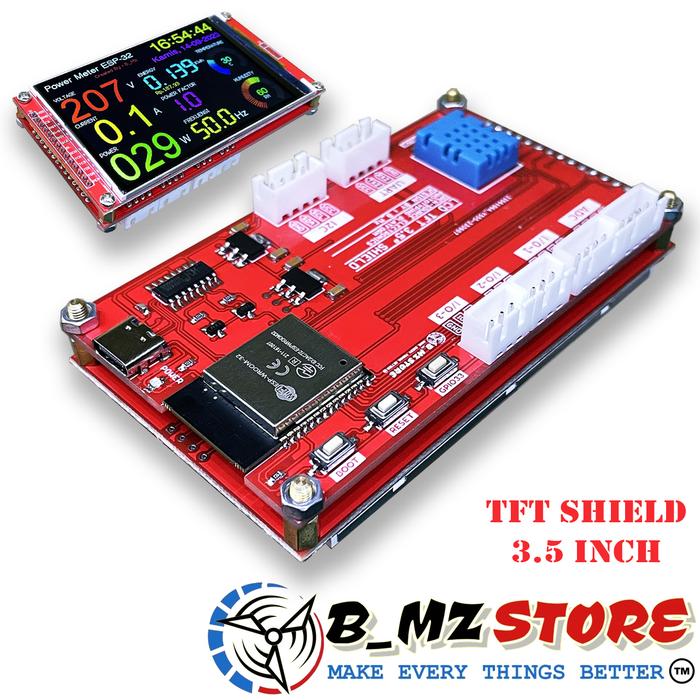

LCD TFT SHIELD ESP 32 - ESP 12 - Arduino IDE TFT Display RGB - 3.5 Inch ESP-32

Rp540.000

Pilih ukuran: 3.5 Inch ESP-32

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: Semua Etalase

Deskripsi 2.4 Inch Spesifikasi Display: - Resolution: 240 x 320 Pixel - LCD Type: TFT - LCD Interface: SPI - Driver IC: ILI9225 - ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage - Display Color: 262k Pin External I/O Shield 2.4 Inch ADC - A0 i2C - SCL - SDA UART - RX - TX I/O - D4 - D6 Deskripsi 3.5 Inch Spesifikasi Display: - Resolution: 320x480 Pixel - LCD Type: TFT - LCD Interface: SPI - Driver IC: ILI9488 - ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage - Display Color: 262k Pin External I/O Shield 3.5 Inch ADC - IO32 - IO12 i2C - SCL - SDA UART - RX - TX I/O - IO14 - IO27 - IO26 - IO25 Include DHT 11 - IO13 Include Button - IO33
