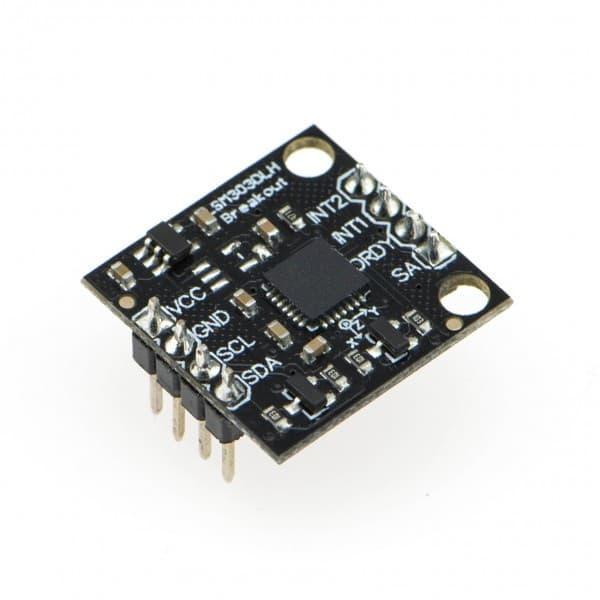

LSM303 Breakout Board - Tilt Compensated Compass

Introduction
The LSM303DLH is a triple axis accelerometer combined with a triple axis magnetic sensor.
This breakout board uses the LSM303DLH to give you the data you need to feed into a microcontroller and calculate tilt-compensated output.

Applications
Compensated compassing
Map rotation
Position detection
Motion-activated functions
Free-fall detection
Intelligent power-saving for handheld devices
Display orientation
Gaming and virtual reality input devices
Impact recognition and logging
Vibration monitoring and compensation

Specifications
Power supply: 3.6~8V DC
Chip: LSM303DLH
±1.3 to ±8,1 gauss magnetic field full-scale
±2 g/±4 g/±8 g dynamically selectable fullscale
16-bit data out
I2C serial interface
2 independent programmable interrupt
generators for free-fall and motion detection
Embedded self-test
Accelerometer sleep-to-wakeup function
6D orientation detection
Dimensions: 20.5mmx20.5mm
Weight: 1g

Shipping list
LSM303 breakout board x1
