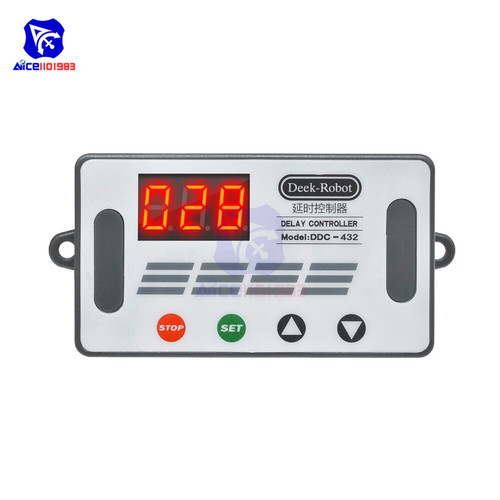

Timer Delay Relay Switch Digital Data Save Delay Controller DDC-432

Feature: To achieve fast turn-on and off the circuit, an unlimited number of switching; The dual-MOS parallel drive, lower resistance, more current, strong power; at room temperature, operating current of up to 15A, power up to 400W, to meet the most use of the equipment; A method for controlling the motor, lights, LED, DC motors, micro-pumps, solenoid valves, etc., very convenient. Parameter: 1: Operating voltage: DC 5 -30V. 2: Trigger Source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system #39;s anti-jamming capability (customers can also shorting common ground). 3: Output capacity: DC 5V - 36V, normal temperature, continuous current 15A, power 400W! Enhance heat dissipation conditions, the maximum current up to 30A. 4: Standby Current: 20mA, Operating Current: 50mA 5: Life: any switching times 6: Working temperature: -40-85 °C Operating mode: P1: trigger signal, the relay is on #34;OP #34; time, and then disconnect; in the #34;OP #34; time, as follows: P1.1: signal is triggered again, invalid P1.2: signal is triggered again, the clock is reset P1.3: Signal trigger again, relay off, stop the clock; P-2: trigger signal, the relay off #34;CL #34; of time, the relay on #34;OP #34; time, and then disconnect relay; P3.1: trigger signal, the relay is turned on after the #34;OP #34; time, the relay off #34;CL #34; time, then the operation cycle, if the trigger signal period, the relay off, stop the clock; the number of cycles ( #34;LOP #34;) can be set. P3.2: without triggering signal, the relay is on #34;OP #34; time, the relay off #34;CL #34; time, and has been cycling; frequency ( #34;LOP #34;) cycle can be set; P-4: signal holding function. If there is a trigger signal timing is cleared, the relay remains on; when the signal disappears, after the timing #34;OP #34; time, the relay is; if another signal during timing, timing is cleared; Package Included: 1 x Trigger Cycle Timer Delay Switch
