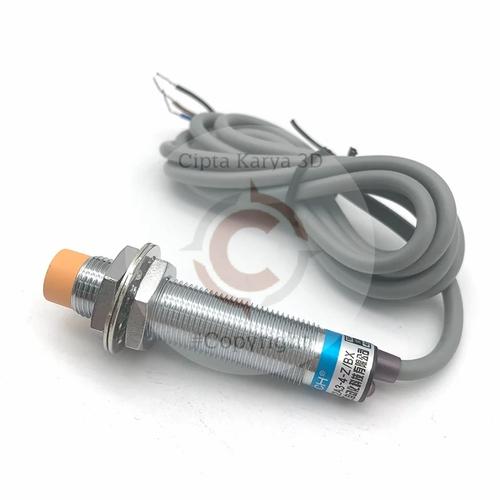

LJ12A3-4-Z/BX Inductive Proximity Sensor Switch NPN DC 6V-36V

Rp31.500

diskon 10%

Harga sebelum diskon Rp35.000

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: Electronic Module

M12 LJ12A3-4-Z/BX 4mm 6V-36V induction DC NPN NO metal sensor inductive proximity switch Screen shield type LJ8A3 sensor switch

LJ12A3-4-Z/BX: NPN Normally Open 3-Line type 12mm diameter ; 4mm detection distance

Model number: LJ12A3-4 series

External dimensions: M12x45

Installation type: Shielded

Detection distance: 4mm

Setting distance: 0-3.6 mm

Supply voltage: 6-36Vdc

Output current: DC type: 300mA max; AC Type: 400mA

Standard detected object: Mild steel (12x12x1mm)

Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)

Response frequency: 500Hz

Output indication: Red LED

Short-circuit protection: NO

Reverse connection protection: Yes

Insulation resistance: 50MΩ min (between charging part and housing)

Dielectric strength: 1000Vac, 1min (between charging part and housing)

IP Rating: IP65

Operating temperature: 25 to 70 °C (13 to 158 °F)

Cable length: 1.2m, PVC cable

Material: Case: Brass-nickel plated; Sensing surface: ABS
