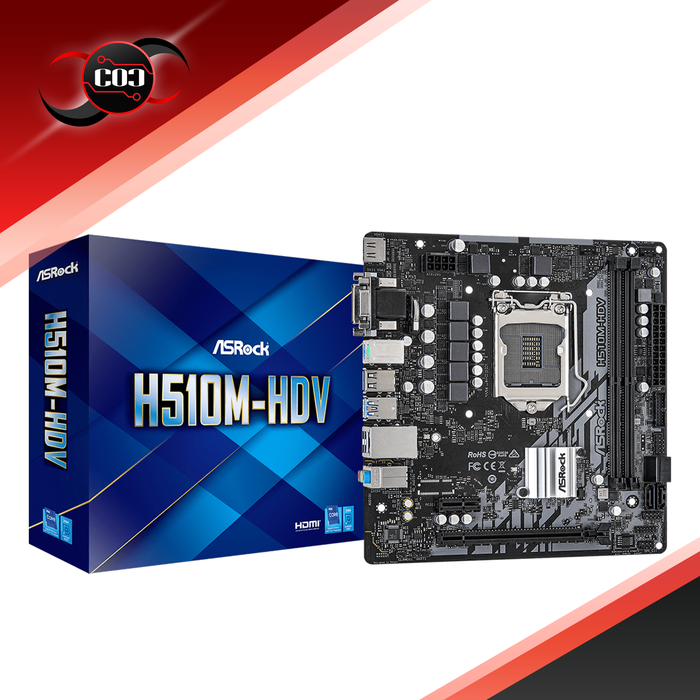

ASRock H510M-HDV - LGA1200

H510M-HDV
Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
Supports DDR4 3200MHz (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: HDMI, DVI-D, D-Sub
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
4 SATA3
4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
Realtek Gigabit LAN



Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- 5 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology

Chipset
- Intel H510

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel Extreme Memory Profile (XMP) 2.0

*11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
