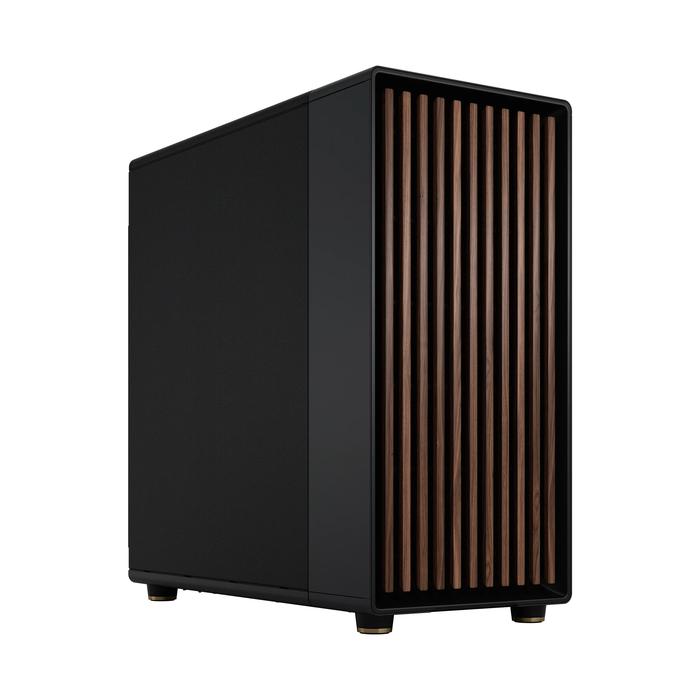

Fractal Design North XL Mesh - Charcoal Black

Specifications

Dedicated 2.5" drive mounts
2

Combined 3.5/2.5” drive mounts
2 included

5.25” drive mounts
0

Expansion slots
7

Front interface
1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic

Total fan mounts (TG Version)
7 x 120 mm or 6 x 140 mm

Total fan mounts (Mesh Version)
9 x 120 mm or 8 x 140 mm

Front fan
3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included)

Top fan
3 x 120 mm, 2 x 140 mm or 2 x 180 mm

Rear fan
1 x 120/140 mm

Dust filters
Front, PSU

Fixed cable straps
Yes

Cable routing grommets
Yes

Captive thumbscrews
HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket

Left side panel
Mesh

Right side panel
Steel



Compatibility

Motherboard compatibility
E-ATX / ATX / mATX / Mini-ITX

Power supply type
ATX

PSU max length
1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm

GPU max length
413 mm with front fan mounted / 380 mm with a 33 mm-thick 420/360 mm front mounted radiator

CPU cooler max height
155 mm with Fan Bracket / 185 mm w.o.

Front radiator
Up to 420/360 mm

Top radiator
Up to 280/360 mm

Rear radiator
1 x 120/140 mm

Cable routing space
29 mm



Dimensions

Case dimensions (LxWxH)
503 x 240 x 509 mm

Case dimensions w/o feet/protrusions/screws
490 x 240 x 490 mm

Net weight
9.7 kg (Mesh) / 9.5kg (TG)

Package dimensions (LxWxH)
604 x 355 x 608 mm

Gross weight
11.9 kg (Mesh) / 11.7kg (TG)
