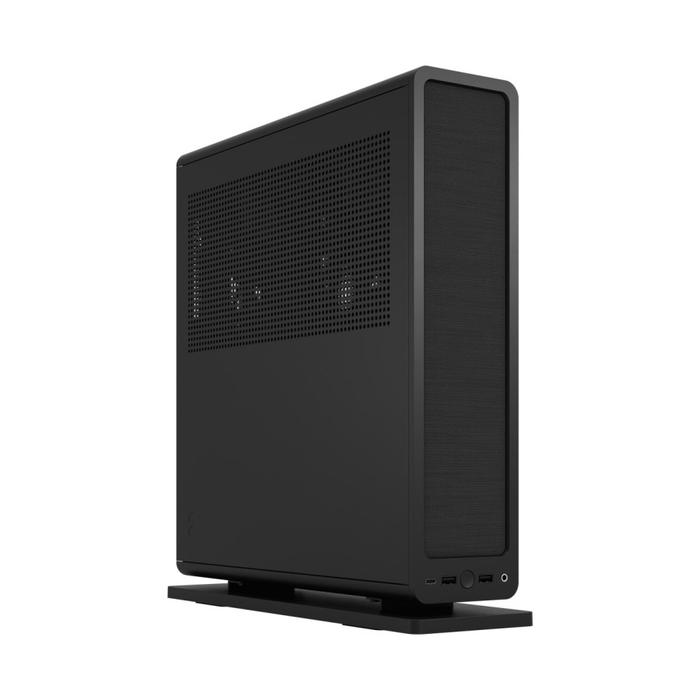

Fractal Design Ridge Mini ITX - Hitam
Rp2.410.000
Pilih warna: Hitam
• Supports GPUs up to a length of 335 mm
• All panels are removable, enabling maximum accessibility
• PCIe 4.0 riser card included
• Small form factor case with a volume of 12.6 liters
• Ventilated on all sides to maximize its cooling potential
• Comes with 2x 140 mm PWM Aspect fans pre-installed
• Supports 2x 120/140 mm and 3x 80 mm fans
Specifications
Dedicated 2.5" drive mounts : 4x included, 4x positions total
Expansion slots : 3-slot
Front interface : 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
Total fan mounts : 2x 120/140 mm and 3x 80 mm
Side fan : 2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan : 3x 80 mm (not included)
Cable routing space : 13,8 mm (behind PSU)
Tool-less slide with thumbscrew lock : Side panels
Captive thumbscrews : Side panels
Left side panel : Steel
Right side panel : Steel
Compatibility
Motherboard compatibility : Mini ITX
Power supply type : SFX, SFX-L
Side radiator : 120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
PSU max length : SFX-L
GPU max length : 325 mm with SSD installed. 335 mm without SSD installed.
GPU max height : 125 mm with top fan(s) installed, 137 mm without top fans
GPU max thickness : 57 mm with 2x 140 mm fans installed, 82 mm without side fans
CPU cooler max height : 70 mm
Dimensions
Case dimensions : Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
Case dimensions w/o feet/protrusions/screws : 355 x 95 x 375 mm
Net weight : 4.3 kg
Package dimensions (LxWxH) : 426 x 167 x 431 mm
Gross weight : 5.5 kg
Volume : 12.6 liter
• All panels are removable, enabling maximum accessibility
• PCIe 4.0 riser card included
• Small form factor case with a volume of 12.6 liters
• Ventilated on all sides to maximize its cooling potential
• Comes with 2x 140 mm PWM Aspect fans pre-installed
• Supports 2x 120/140 mm and 3x 80 mm fans
Specifications
Dedicated 2.5" drive mounts : 4x included, 4x positions total
Expansion slots : 3-slot
Front interface : 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
Total fan mounts : 2x 120/140 mm and 3x 80 mm
Side fan : 2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan : 3x 80 mm (not included)
Cable routing space : 13,8 mm (behind PSU)
Tool-less slide with thumbscrew lock : Side panels
Captive thumbscrews : Side panels
Left side panel : Steel
Right side panel : Steel
Compatibility
Motherboard compatibility : Mini ITX
Power supply type : SFX, SFX-L
Side radiator : 120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
PSU max length : SFX-L
GPU max length : 325 mm with SSD installed. 335 mm without SSD installed.
GPU max height : 125 mm with top fan(s) installed, 137 mm without top fans
GPU max thickness : 57 mm with 2x 140 mm fans installed, 82 mm without side fans
CPU cooler max height : 70 mm
Dimensions
Case dimensions : Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
Case dimensions w/o feet/protrusions/screws : 355 x 95 x 375 mm
Net weight : 4.3 kg
Package dimensions (LxWxH) : 426 x 167 x 431 mm
Gross weight : 5.5 kg
Volume : 12.6 liter
