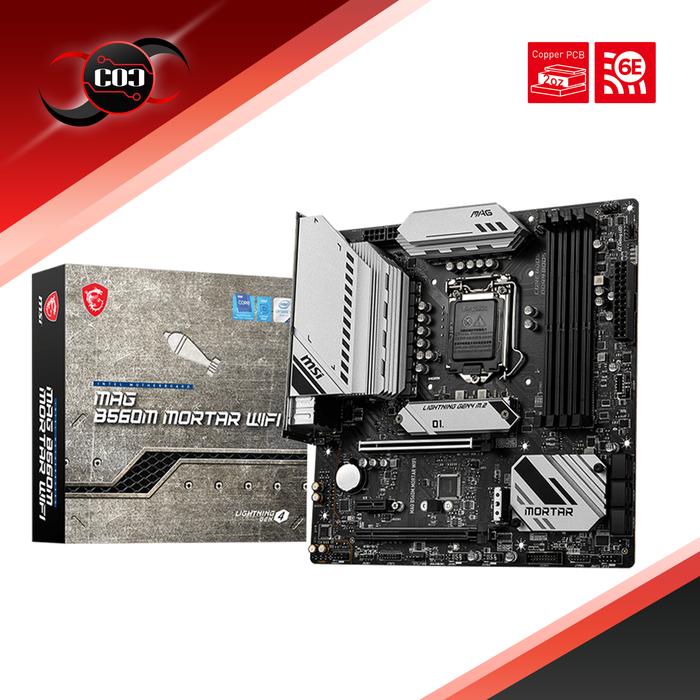

MSI MAG B560M Mortar Wifi

PROCESSOR
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1
Processor socket LGA1200

CHIPSET
Intel B560 Chipset

MEMORY
4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT
2x PCIe x16 slots
Support x16/ x4
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 (From B560 chipset)1
Support up to PCIe 3.0
1x PCIe 3.0 x1 slot
PCI_E2 (From B560 chipset)
PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.

ONBOARD GRAPHICS
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
Available only on processors featuring integrated graphicsGraphics specifications may vary depending on the CPU installed.

MULTI-GPU
Supports 2-way AMD CrossFire Technology
