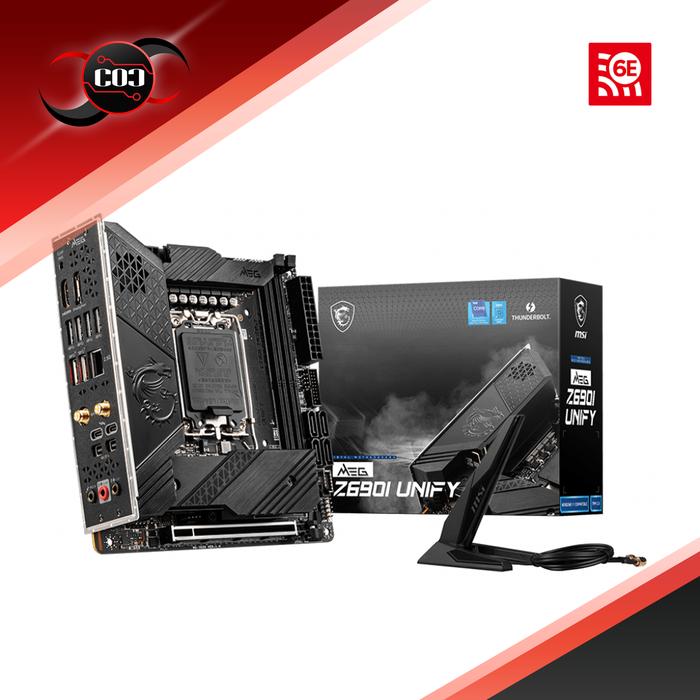

MSI MEG Z690I UNIFY

PROCESSOR
Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron processors 1
Processor socket LGA1700

CHIPSET
Intel Z690 Chipset

MEMORY
2x DDR5 memory slots, supporting up to 64GB 1
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

EXPANSION SLOTS
1x PCIe 5.0 x16 slot (From CPU)

ONBOARD GRAPHICS
1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz
1x HDMI 2.1 with HDR port, supporting a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

THUNDERBOLT 4
Intel JHL8540 Thunderbolt 4 Controller
2x Thunderbolt 4 (USB-C) ports on the back panel
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A ,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)

STORAGE
4x SATA 6Gb/s ports (From Z690 chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2280 storage devices
M2_2 slot (From Z690 chipset)
M2_2 supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2280 storage devices
M2_3 slot (From Z690 chipset)
M2_3 supports up to PCIe 4.0 x4
Supports 2280 storage devices
M2_2~3 slots support Intel Optane Memory
Supports Intel Smart Response Technology for Intel Core processors
