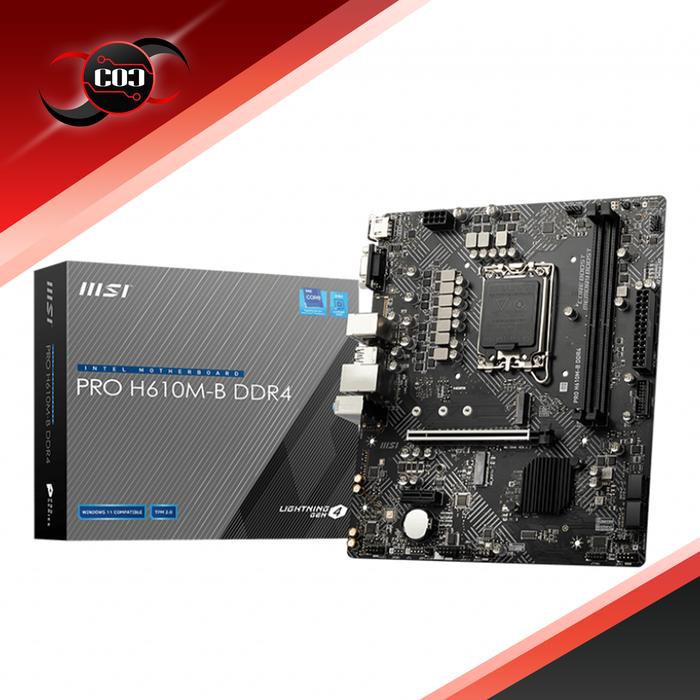

MSI PRO H610M-B DDR4

PROCESSOR
Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1
Processor socket LGA1700

CHIPSET
Intel H610 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)

ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

SATA PORTS
4x SATA 6Gb/s ports
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD SLOT
1x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

AUDIO
Realtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio

LAN
1x Intel I219V 1Gbps LAN controller

POWER CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

USB
Intel H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

FAN CONNECTORS
1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector

JUMPERS
1x Clear CMOS jumper
