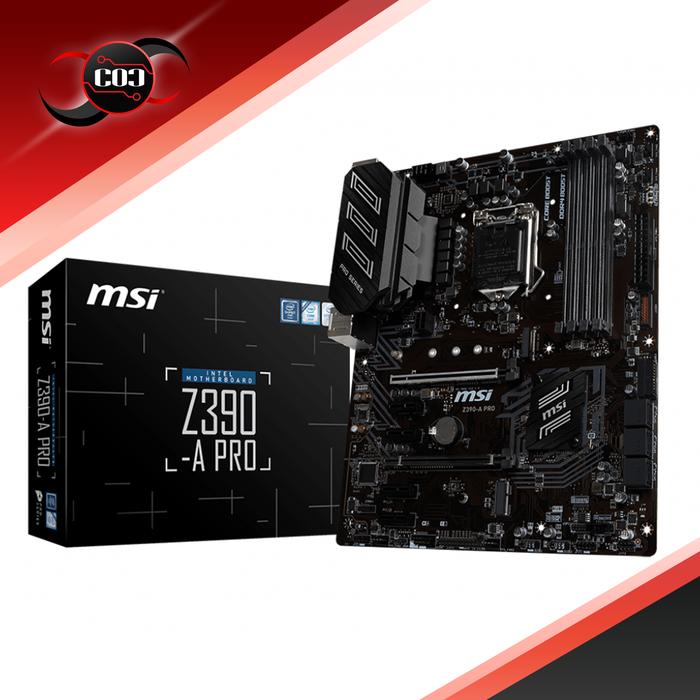

MSI Z390-A Pro (LGA1151, Z390, DDR4, USB3.1, SATA3)

Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector
-Supports 9th / 8th Gen Intel" Core' / Pentium" Celeron" processors for LGA 1151 socket
-Supports DDR4 Memory, up to 4400(OC) MHz
-Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
-Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
-Audio Boost: Reward your ears with studio grade sound quality.
-Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
-Intel" LAN""'Premium network solution from Intel" for professional and multimedia use. Delivers a secure, stable and fast network connection.
-Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire'
-Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds


PROCESSOR
Supports 9th/ 8th Gen Intel" Core' / Pentium" Gold / Celeron" processors for LGA 1151 socket

CHIPSET
Intel" Z390 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB1
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz1
Supports Dual Channel mode
Supports non-ECC, un-buffered memory
Supports Intel" Extreme Memory Profile (XMP)
Please refer to Compatibility for more information on compatible memory

SLOTS
2 x PCIe 3.0 x16 slots
4 x PCIe 3.0 x1 slots
1 x M.2 slot with E key for Integrated Intel" Wireless-AC(CNVi) module only
