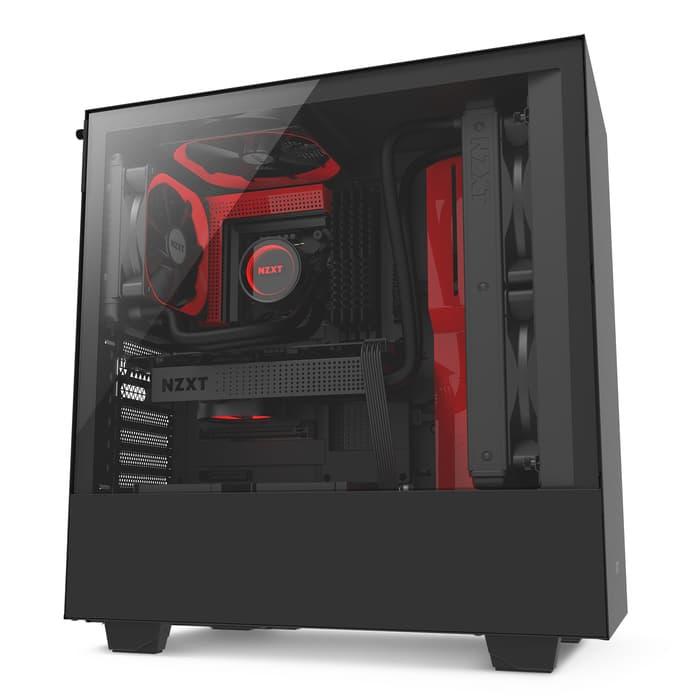

NZXT H500 Black / Black-Red

The H500 showcases the signature design of the NZXT H Series cases. The elegant all-steel construction includes the iconic cable management system to streamline building and upgrading your system. You can easily build a powerful system with plenty of options for storage and cooling. The H500 includes two Aer F* fans and a seamless tempered glass side panel.
-Premium, all-steel construction with the sleek H Series design; available in four color combinations
-Tempered glass panel showcases your build with crisp clarity
-System installation and expansion made easy with all-new cable management system
-Water-cooling installation simplified for both AIO and custom loop


Dimensions
W: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)

Material(s)
SECC Steel and Tempered Glass

Weight
7 kg

Motherboard Support
Mini-ITX, MicroATX, and ATX

I/O Ports
2 x USB 3.1 Gen 1
1 x Audio/Mic

Filters
Front right side panel, bottom front and PSU intake

Expansion Slots
7

Drive Bays
2.5: 2+1
3.5: 2+1

Radiator Support
Front: Up to 280mm
Rear: 120mm

Fan Support
Front: 2 x 120 / 2 x 140mm
Top: 1 x 120mm (1 Aer F120 Case Version included) / 1 x 140mm
Rear: 1 x 120mm (1 Aer F120 Case Version included)

Fan Specs
Aer F120 (Case Version)
Speed: 1200 + 200 RPM
Airflow: 50.42
CFM Noise: 28 dBA
Bearing: Rifle Bearing

Clearance
Cable Management: 19-23mm
GPU Clearance: Up to 381mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
