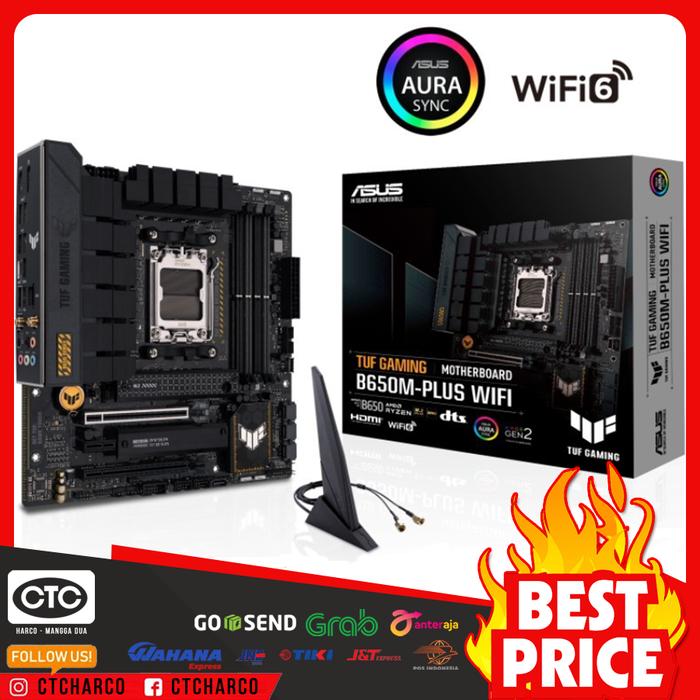

Motherboard ASUS TUF GAMING B650M-PLUS WIFI (Socket AM5, DDR5) - Mobo Only

𝐍𝐨𝐭𝐞 :
+ 𝐂𝐞𝐤 𝐬𝐭𝐨𝐜𝐤 𝐭𝐞𝐫𝐥𝐞𝐛𝐢𝐡 𝐝𝐚𝐡𝐮𝐥𝐮 𝐬𝐞𝐛𝐞𝐥𝐮𝐦 𝐨𝐫𝐝𝐞𝐫 (𝐊𝐞𝐭𝐞𝐫𝐬𝐞𝐝𝐢𝐚𝐚𝐧 𝐓𝐞𝐫𝐛𝐚𝐭𝐚𝐬).
+ 𝐆𝐚𝐦𝐛𝐚𝐫 𝐡𝐚𝐧𝐲𝐚 𝐢𝐥𝐮𝐬𝐭𝐫𝐚𝐬𝐢, 𝐯𝐞𝐫𝐬𝐢 𝐩𝐫𝐨𝐝𝐮𝐤 𝐝𝐚𝐩𝐚𝐭 𝐛𝐞𝐫𝐛𝐞𝐝𝐚 𝐭𝐞𝐫𝐠𝐚𝐧𝐭𝐮𝐧𝐠 𝐤𝐞𝐛𝐢𝐣𝐚𝐤𝐚𝐧 𝐯𝐞𝐧𝐝𝐨𝐫, 𝐧𝐚𝐦𝐮𝐧 𝐭𝐢𝐝𝐚𝐤 𝐦𝐞𝐧𝐠𝐮𝐫𝐚𝐧𝐠𝐢 𝐬𝐩𝐞𝐬𝐢𝐟𝐢𝐤𝐚𝐬𝐢 𝐝𝐚𝐧 𝐟𝐮𝐧𝐠𝐬𝐢 𝐩𝐫𝐨𝐝𝐮𝐤.

【𝙏𝙖𝙢𝙗𝙖𝙝𝙖𝙣　𝙋𝙖𝙘𝙠𝙞𝙣𝙜　𝘼𝙜𝙖𝙧　𝙋𝙖𝙠𝙚𝙩　𝘼𝙢𝙖𝙣　𝙎𝙖𝙢𝙥𝙖𝙞　𝘿𝙞　𝙏𝙪𝙟𝙪𝙖𝙣　：】 https://www.tokopedia.com/ctcharco/etalase/tambahan-packing

SPESIFIKASI:
CPU
- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset
- AMD B650

Memory
- 4 x DIMM, Max. 128GB, DDR5
- 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports AMD EXTended Profiles for Overclocking (EXPO)
- OptiMem II

Graphics
- 1 x DisplayPort*
- 1 x HDMI port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
- AMD Ryzen 7000 Series Desktop Processors*
-- 1 x PCIe 4.0/3.0 x16 slot
- AMD B650 Chipset
-- 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
-- 1 x PCIe 4.0/3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
- AMD Ryzen 7000 Series Desktop Processors
-- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
-- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD B650 Chipset
-- 4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
