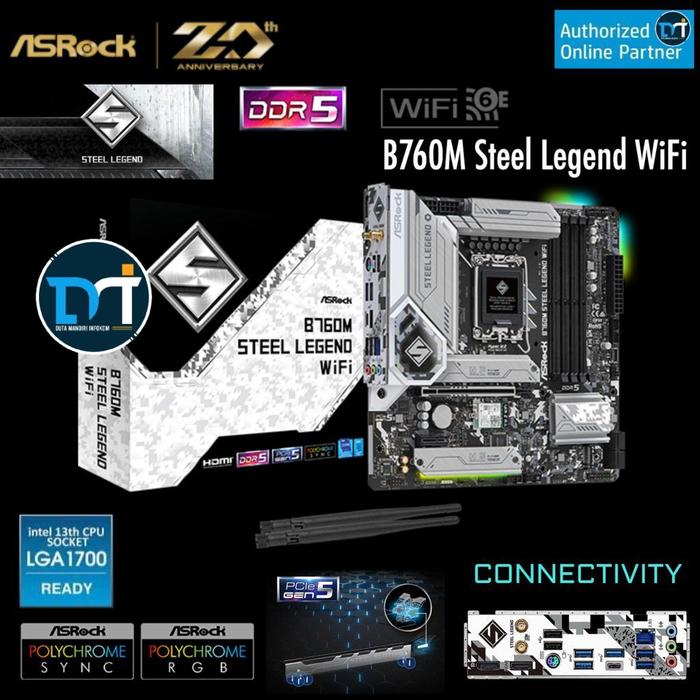

ASRock B760M Steel Legend WiFi - [Socket 1700, B760, DDR5, m-ATX]

Garansi Resmi ASRock Indonesia - 3 Tahun

100% Barang BARU - ORI dan RESMI
100% Barang bisa di kirim kan via Gojek / Grab Instant

Features
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
12+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x1
Graphics Output Options: HDMI, DisplayPort, eDP
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front)

CPU Supports
13th Gen & 12th Gen Intel Core Processors (LGA1700)
Intel Hybrid Technology
Intel Turbo Boost Max 3.0 Technology
Intel Thermal Velocity Boost (TVB)
Intel Adaptive Boost Technology (ABT)

Chipset : Intel B760 Chipset

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
Max. capacity of system memory: 128GB
Supports Intel Extreme Memory Profile (XMP) 3.0

Graphics : Intel Xe Graphics Architecture (Gen 12)
1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software

Wireless LAN
802.11ax Wi-Fi 6E Module
IEEE 802.11a/b/g/n/ac/ax
Dual-Band 2x2 with extended 6GHz band support*
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Storage
CPU : 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

Form Factor : Micro ATX (24.4 x 24.4 cm) - 2oz Copper PCB

OS : Microsoft Windows 10 64-bit / 11 64-bit
