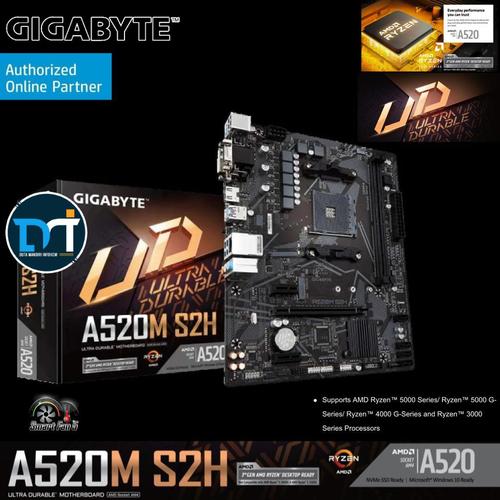

Gigabyte A520M S2H - (Socket AM4, AMD A520, DDR4, USB 3.2, SATA3]

Garansi Resmi PT NJT/AGS - 3 Tahun

AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

CPU
AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
(Please refer "CPU Support List" for more information.)

Chipset : AMD A520

Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4
5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics : Integrated Graphics

Audio
Realtek Audio CODEC
High Definition Audio

LAN : Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots
CPU : 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset : 2 x PCI Express x1 slots, supporting PCIe 3.0

Storage Interface
CPU : 1 x M.2 connector
(Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset : 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Form Factor ; Micro ATX Form Factor; 24.4cm x 20.5cm
