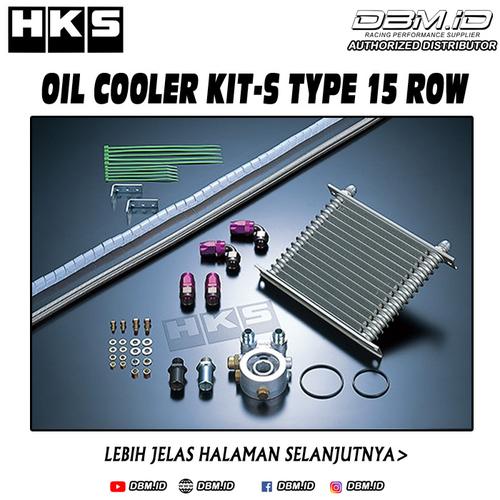

HKS Oil Cooler Kit - S Type 15 Row UNIVERSAL 15002-AK006

General purpose oil cooler kit Two types are available: R (replacement) type attachment that moves the oil filter and S (sandwich) type that sandwiches the attachment with the oil filter . ■ Control the oil temperature with the thermostat function Since the HKS oil cooler uses a core with excellent cooling effect, a thermostat is set to avoid an increase in the viscous resistance of engine oil due to overcooling. (Excluding some models). This thermostat has a good response to temperature changes and also has a relief function. When the temperature exceeds the set temperature of the thermostat, the oil flows to the core and is cooled. If it is less than that, the oil temperature suitable for the engine is maintained by bypassing the core. ◆ Thermostat valve operation start temperature 70 ℃ (± 3 ℃) ◆ Thermostat valve fully closed temperature 80 ℃ (± 3 ℃) ■ Considering emergency safety measures by combining a thermostat with a relief function If the oil pressure rises abnormally, such as when the core is crushed or the line is jammed, the oil is relieved from the thermostat, the core is bypassed, the engine is protected, and the line is prevented from being damaged. ■ Stainless steel mesh hose is used for the oil line with an emphasis on durability. The stainless mesh hose used in the kit can be cut to an appropriate length according to the model and layout of the vehicle to be installed. Workshop kita : DBM : Jalan Ngagel Jaya No.2 Surabaya Senin - Sabtu 08.00-17.00 WIB Atau Online via Facebook : dbm.id Instagram : @dbm.id Tokopedia : DBM website : dbm.id Info lebih lanjut CS1 : 0819 0590 2100 Pembelian non tokopedia : CS2 : 0877 5583 7000 CS3 : 0812 4970 5000 saran amp; kritik : 0818 328 878
