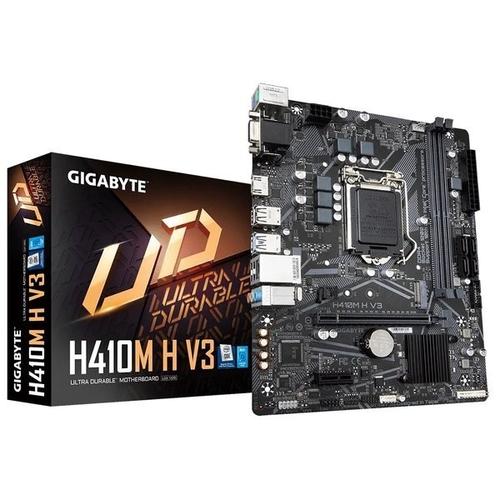

MAINBOARD GIGABYTE H410M H V3 (LGA1200, H410, DDR4, USB3.2, SATA3)

MAINBOARD GIGABYTE H410M H V3 (LGA1200, H410, DDR4, USB3.2, SATA3) CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU Chipset Intel H510 Express Chipset Memory Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB (Graphics specifications may vary depending on CPU support.) Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings gt; Playback Device to change the default setting first. Please visit GIGABYTE #39;s website for details on configuring the audio software. LAN Gigabit Ethernet Chip (1 Gbps/100 Mbps) Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard. Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors
