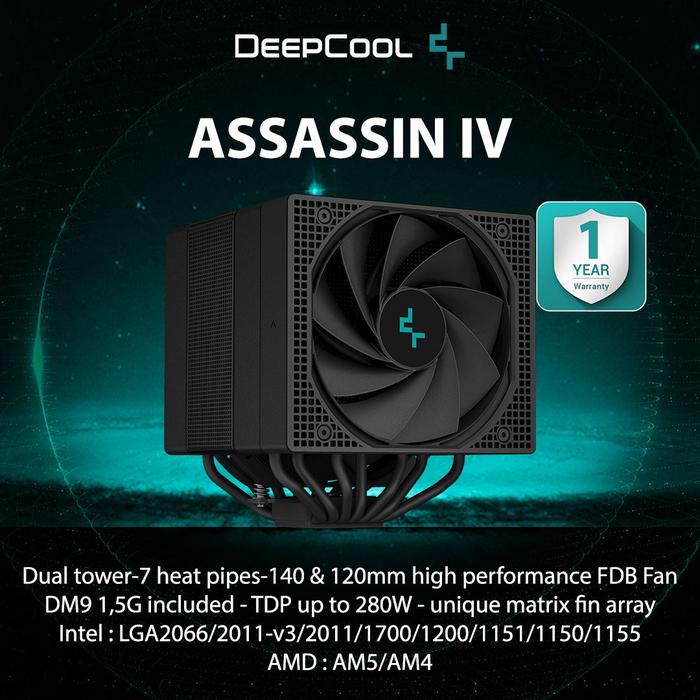

Deepcool Assassin IV Ultra Quiet CPU Cooler

The silent heat killer returns with a new aesthetic and maximum cooling capacity. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.

THE AIR APPARENT
The newest addition to the ASSASSIN series claims the air-cooling crown in both cooling capacity and ultra-quiet operation.

BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.

IN SILENT OR EXTREME MODE, THE ASSASSIN IV REIGNS SUPREME
With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to an unrestricted cooling powerhouse when peak performance is all that matters.

Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4

Technical Spec
Product Dimensions 144x147x164 mm
Heatsink Dimensions 140x110x160 mm
Net Weight 1575 g
Heatpipe 6 mmx7 pcs
Fan Dimensions 140x140x25 mm / 120x120x25 mm
Fan Speed (Performance Mode) 500~1700 RPM10%
Fan Airflow (Performance Mode) 79.1 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode) 2.44 mmAq / 2.1 mmAq
Overall Noise (Performance Mode) 29.3 dB(A)
Fan Speed (Quiet Mode) 500~1350 RPM10%
Fan Airflow (Quiet Mode) 63.76 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode) 1.58 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode) 22.6 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Motor Type 6-Pole Fan Motor
Fan Rated Voltage 12 VDC
Fan Rated Current 0.1 A / 0.07 A
Fan Power Consumption 1.2 W / 0.84 W
Rated Voltage 12 VDC
Power Consumption(Performance Mode) 2.88 W
Power Consumption(Quiet Mode) 1.56 W
