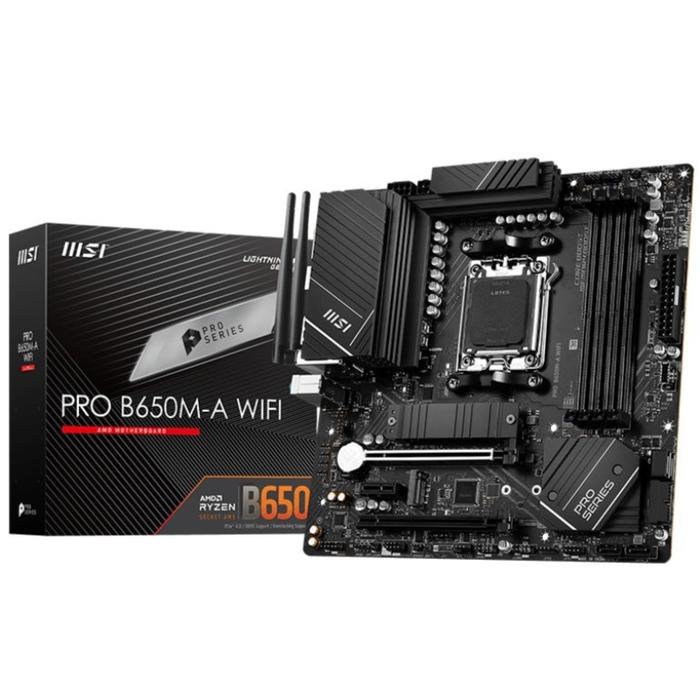

MSI PRO B650M-A WIFI (SOCKET AM5,DDR5)

MSI PRO B650M-A WIFI (SOCKET AM5,DDR5)
GARANSI RESMI MSI 3 TAHUN

Offline Store
BTM Mall Lantai 1 Blok D1 No.27-28 Kircon

Specifications :

CHIPSET
AMD B650

CPU SUPPORT
Supports AMD Ryzen 7000 Series Desktop Processors
Socket AM5

MEMORY
4x DDR5, Maximum Memory Capacity 128GB

Memory
Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5800+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS
1x HDMI
1x DisplayPort
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE
2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN
Realtek 8125BG 2.5G LAN

WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
