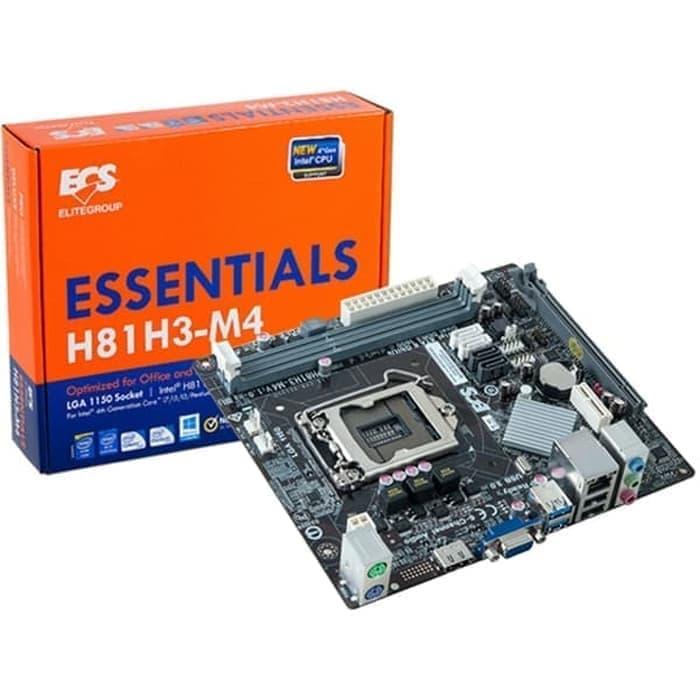

MOTHERBOARD ECS-CHIPSET INTEL H81H3-M4 Socket 1150

CPU Supports new 4th gen Intel Core family, Pentium, Celeron series processors in LGA1150 socket Solid Capacitor for CPU side Please refer to CPU support list for details CHIPSET Intel H81 Express Chipset MEMORY Dual-channelDDR3 Memory architecture Supports DDRnon-ECC, Un-buffered SDRAM Memory X 40-pin DDR3 DIMM socket Support up to 1 GB* Note:Please refer to the latest Memory support list for details EXPANSION SLOT 1 X PCI Express X1 Gen .0 slot(s) 1 X PCI Express X 1 Gen .0 slot(s) Storage Support by H81 Express Chipset X Serial ATAIII Gb/s X Serial ATAII 3Gb/s Audio -Channel HD audio CODEC VIA 1705 VIA VT1705 -channel High Definition audio CODEC Compliant with HD audio specification for a whole new immersive surround sound experience 3 DACs and ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR Low Power Consumption Capability for full rate BluRay / DVD / HD DVD support. LAN Realtek 8111G Gigabit Fast Ethernet Controller Wake-On-LAN USB Support by H81 Express Chipset X USB3.0 port(s) up to 5Gb/s X USB.0 port(s) Up to 480 Mb/s REAR PANEL I/O 1 X PS/ Keyboard amp; PS/ mouse connectors 1 X Audio port ( Out/ In/Mic In) 1 X RJ-45 port 1 X HDMI port(s) 1 X DVI-I port(s) (optional) 1 X D-Sub (VGA) port(s) X USB3.0 port(s) X USB.0 port(s) CONNECTORS amp; HEADERS 1 X 4-pin ATX Power Supply connector 1 X 4-pin 1V Power connector 1 X 4-pin CPU_FAN connector 1 X 3-pin SYS_FAN connector 1 X Speaker header X USB .0 header 1 X CLR_CMOS header 1 X Serial port header (COM) SYSTEM BIOS AMI BIOS with 4 MB SPI Flash ROM Supports M.I.B III Utility ACPI amp; DMI Dual Display Support GUI UEFI BIOS Multi-Language BIOS FORM FACTOR mATX Form Factor 190mm x 170mm OS Support Windows 7 3-bit Windows 7 4-bit Windows 8 3-bit Windows 8 4-bit Certifications CE/FCC Certification ErP/EuP Certification WHQL Certification WHCK Certification Bundled Software ECS Intelligent EZ Utility : eBLU, eDLU, eSF
