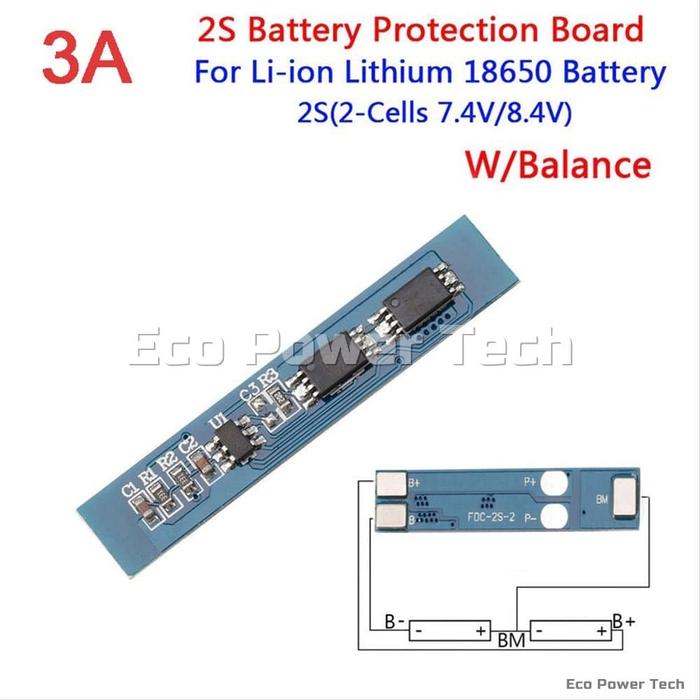

Modul BMS 2S 3A 7.4V 8.4V 18650 Baterai Li-Ion Protection Balance

Ready stock, silakan order

Battery protection board ini digunakan untuk over charge protection, over-discharge protection, short circuit protection,overcurrent protection dan disertai dengan balance pada jenis baterai li-on lithium 18650 ketika melakukan pengisian sehingga batterai anda terlindungi.

1) Dibuat dengan sirkuit yang mampu mendeteksi tegangan dengan presisi tinggi.
2) Dibuat dengan tiga sirkuit deteksi arus (1 over current, 2 over current, load short circuit)
3) Melalui tabung MOS, sehingga dapat mengendalikan pengisian dan pemakaian baterai;
4) Konsumsi arus ketika standby rendah

Specifications:
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Over charge voltage:4.25-4.35v+/-0.05v
Over dishcarge voltage: 2.3-3.0v+/-0.05v
Max continuous current:3A
Max peak current:5A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:less than 3uA
Life cycle :more than 50000hours
Resistance:Less than 45m
Short cut protection :Protectable,charge can repair
Size: 3.6*0.7cm/1.42 x 0.28 inch

Main function: over charging protection, over discharge protection,short circuit protection,over current protection function.
Usage: 2 string 7.4V lithium Lipo Li-ion 18650 battery phosphate rechargeable battery pack.
Stable performance.

Harga per 1 pcs
