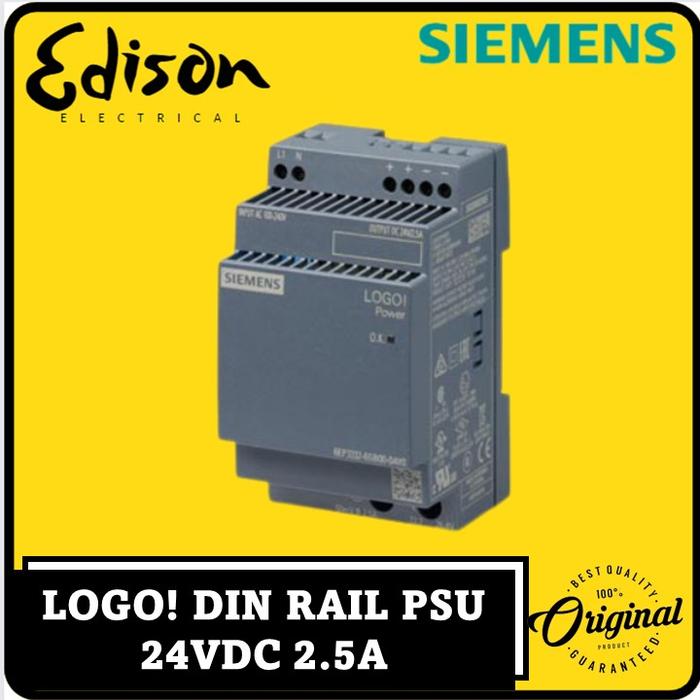

SIEMENS LOGO! PSU Power Supply Unit 6EP3332-6SB00-0AY0 24VDC 2.5A

SIEMENS LOGO! PSU Power Supply Unit 6EP3332-6SB00-0AY0 24VDC 2.5A Input type of the power supply network 1-phase AC or DC supply voltage at AC ● minimum rated value 100 V ● maximum rated value 240 V ● initial value 85 V ● full-scale value 264 V input voltage ● at DC 110 ... 300 V design of input wide range input Yes overvoltage overload capability 300 V AC for 1 s operating condition of the mains buffering at Vin = 187 V buffering time for rated value of the output current in the event of power failure minimum 40 ms operating condition of the mains buffering at Vin = 187 V line frequency ● 1 rated value 50 Hz ● 2 rated value 60 Hz line frequency 47 ... 63 Hz input current ● at rated input voltage 120 V 1.22 A ● at rated input voltage 230 V 0.66 A current limitation of inrush current at 25 °C maximum 52 A I2t value maximum 3 A²·s fuse protection type internal ● in the feeder Recommended miniature circuit breaker: from 10 A characteristic B or from 6 A characteristic C Output voltage curve at output Controlled, isolated DC voltage output voltage at DC rated value 24 V output voltage ● at output 1 at DC rated value 24 V relative overall tolerance of the voltage 3 % relative control precision of the output voltage ● on slow fluctuation of input voltage 0.1 % ● on slow fluctuation of ohm loading 0.1 % residual ripple ● maximum 200 mV ● typical 30 mV voltage peak ● maximum 300 mV ● typical 50 mV adjustable output voltage 22.2 ... 26.4 V product function output voltage adjustable Yes type of output voltage setting via potentiometer display version for normal operation Green LED for output voltage OK behavior of the output voltage when switching on No overshoot of Vout (soft start) response delay maximum 0.5 s voltage increase time of the output voltage ● typical 100 ms output current ● rated value 2.5 A ● rated range 0 ... 2.5 A; +55 ... +70 °C: Derating 2%/K supplied active power typical 60 W product feature ● bridging of equipment Yes number of parallel-switched equipm
