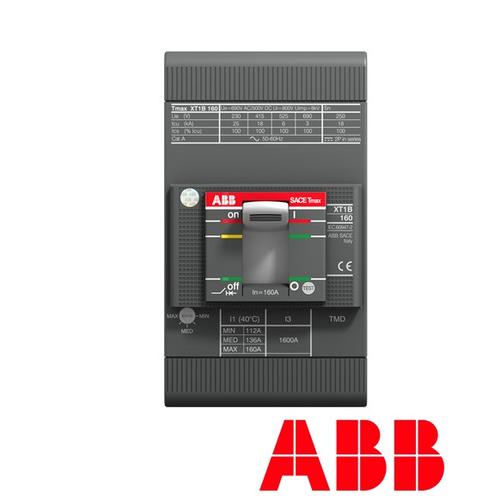

MCCB ABB TMD XT1H 63A 70KA 3P 1SDA067450R1

C.BREAKER TMAX XT1H 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 63-630 A Dimensions Product Net Width:76.2 mm Product Net Height:130 mm Product Net Depth / Length:70 mm Product Net Weight:1 kg Container Information Package Level 1 Units:1 piece Package Level 1 Width:128 mm Package Level 1 Height:135 mm Package Level 1 Depth / Length:143 mm Package Level 1 Gross Weight:1.1 kg Package Level 1 EAN:8015644013448 Environmental RoHS Status:Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 Additional Information Circuit Breaker Type to be Associated:Power Distribution Current Type:AC/DC Electrical Durability:120 cycles per hour 8000 cycle Mechanical Durability:Nr. Operations 240 cycles per hour Nr. Operations 25000 cycle Number of Poles:3 Opening Time:CB with SOR 15 ms CB with UVR 15 ms Order Multiple:1 piece Power Loss:at Rated Operating Conditions per Pole 4.3 W Product Main Type:SACE Tmax XT Product Name:Moulded Case Circuit Breaker Product Type:CB Rated Current (In):63 A Rated Frequency (f):50 / 60 Hz Rated Voltage (Ur):690 V Rated Impulse Withstand Voltage (Uimp):8 kV Rated Instantaneous Short-Circuit Current Setting (Ii):630 A Rated Insulation Voltage (Ui):800 V Rated Operational Voltage:690 V AC 500 V DC Rated Service Short-Circuit Breaking Capacity (Ics):(220 V AC) 75 kA (230 V AC) 75 kA (240 V AC) 75 kA (380 V AC) 52.5 kA (415 V AC) 37.5 kA (440 V AC) 32.5 kA (500 V AC) 25 kA (525 V AC) 17.5 kA (690 V AC) 5 kA (250 V DC) 2 Poles in Series 52.5 kA (500 V DC) 3 Poles in Series 52.5 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu):(220 V AC) 100 kA (230 V AC) 100 kA (240 V AC) 100 kA (380 V AC) 70 kA (415 V AC) 70 kA (440 V AC) 65 kA (500 V AC) 50 kA (525 V AC) 35 kA (690 V AC) 10 kA (250 V DC) 2 Poles in Series 70 kA (500 V DC) 3 Poles in Series 70 kA Rated Uninterrupted Current (Iu):160 A Release:TMD Release Type:TM Setting Range:44.1...63 A Short-Circuit Performance Level:H Standards:IEC Sub-type:XT1
