HC-SR04 HCSR04 SR 04 Ultrasonic Distance Sensor Jarak Robot Bracket - 5V HC-SR04

Fungsi: sensor jarak
Tipe: HC-SR04
Media: ultrasonic

Ultrasonic Ranging Module HC - SR04

Product features:
Ultrasonic ranging module HC - SR04 provides 2cm - 400cm non-contact measurement function, the ranging accuracy can reach to 3mm.
The modules includes ultrasonic transmitters, receiver and control circuit.
The basic principle of work:
(1) Using IO trigger for at least 10us high level signal,
(2) The Module automatically sends eight 40 kHz and detect whether there is a pulse signal back.
(3) IF the signal back, through high level , time of high output IO duration is the time from sending ultrasonic to returning.

Test distance = (high level time×velocity of sound (340M/S) / 2

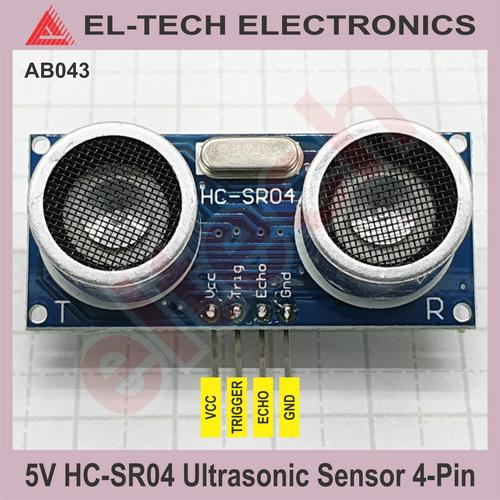

Wire connecting direct as following:
(1) 5V Supply
(2) Trigger Pulse Input
(3) Echo Pulse Output
(4) 0V Ground

Electric Parameter:
- Working Voltage: 5VDC
- Working Current: 15mA
- Working Frequency: 40Hz
- Max Range: 400cm
- Min Range: 2cm
- Measuring Angle: 15 degree
- Trigger Input Signal: 10uS TTL pulse
- Echo Output Signal: Input TTL lever signal and the range in proportion
- Dimension: 45*20*15mm
