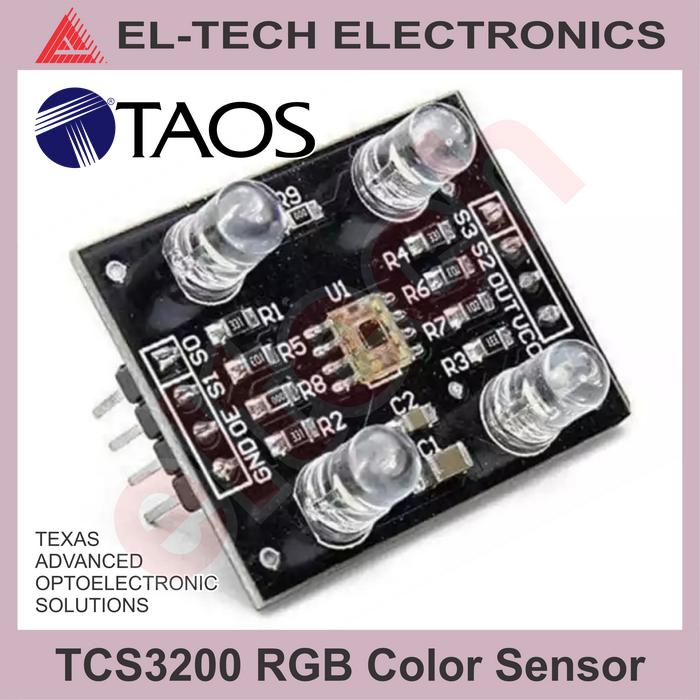

TCS3200 TCS 3200 TCS230 TCS 230 Color Colour Warna RGB Sensor Recognit - TCS3200
Rp119.700
Pilih ukuran: TCS3200
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Modul Sensor
Barang, merk, kode sesuai foto
TCS3200
PROGRAMMABLE COLOR LIGHT-TO-FREQUENCY CONVERTER
Features:
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale Output Frequency
- Communicates Directly With a Microcontroller
- Single-Supply Operation (2.7 V to 5.5 V)
- Power Down Feature
- Nonlinearity Error Typically 0.2% at 50 kHz
- Stable 200 ppm/°C Temperature Coefficient
- Low-Profile Lead (Pb) Free and RoHS Compliant Surface-Mount Package
Description:
The TCS3200 and TCS3210 programmable color
light-to-frequency converters that combine configurable silicon photodiodes and a current-to-frequency converter on a single monolithic CMOS integrated circuit.
The output is a square wave (50% duty cycle) with frequency directly proportional to light intensity (irradiance).
The full-scale output frequency can be scaled by one of three preset values via two control input pins.
Digital inputs and digital output allow direct interface to a microcontroller or other logic circuitry.
Output enable (OE) places the output in the high-impedance state for multiple-unit sharing of a microcontroller input line.
In the TCS3200, the light-to-frequency converter reads an 8 x 8 array of photodiodes. Sixteen photodiodes have blue filters, 16 photodiodes have green filters, 16 photodiodes have red filters, and 16 photodiodes are clear with no filters.
The four types (colors) of photodiodes are interdigitated to minimize the effect of non-uniformity of incident
irradiance. All photodiodes of the same color are connected in parallel. Pins S2 and S3 are used to select which group of photodiodes (red, green, blue, clear) are active. Photodiodes are 110 μm x 110 μm in size and are on 134-μm centers.
TCS3200
PROGRAMMABLE COLOR LIGHT-TO-FREQUENCY CONVERTER
Features:
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale Output Frequency
- Communicates Directly With a Microcontroller
- Single-Supply Operation (2.7 V to 5.5 V)
- Power Down Feature
- Nonlinearity Error Typically 0.2% at 50 kHz
- Stable 200 ppm/°C Temperature Coefficient
- Low-Profile Lead (Pb) Free and RoHS Compliant Surface-Mount Package
Description:
The TCS3200 and TCS3210 programmable color
light-to-frequency converters that combine configurable silicon photodiodes and a current-to-frequency converter on a single monolithic CMOS integrated circuit.
The output is a square wave (50% duty cycle) with frequency directly proportional to light intensity (irradiance).
The full-scale output frequency can be scaled by one of three preset values via two control input pins.
Digital inputs and digital output allow direct interface to a microcontroller or other logic circuitry.
Output enable (OE) places the output in the high-impedance state for multiple-unit sharing of a microcontroller input line.
In the TCS3200, the light-to-frequency converter reads an 8 x 8 array of photodiodes. Sixteen photodiodes have blue filters, 16 photodiodes have green filters, 16 photodiodes have red filters, and 16 photodiodes are clear with no filters.
The four types (colors) of photodiodes are interdigitated to minimize the effect of non-uniformity of incident
irradiance. All photodiodes of the same color are connected in parallel. Pins S2 and S3 are used to select which group of photodiodes (red, green, blue, clear) are active. Photodiodes are 110 μm x 110 μm in size and are on 134-μm centers.
