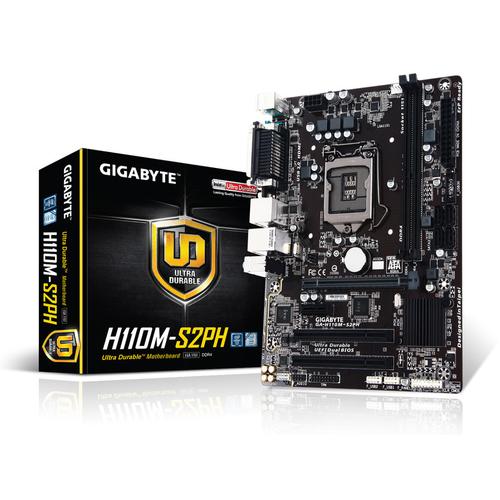

Gigabyte GA-H110M-S2PH DDR4 Intel Socket 1151

Prosesor Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package * For 7th Generation Intel Core processors support need to update the latest BIOS. L3 cache varies with CPU (Please refer #34;CPU Support List #34; for more information.) Chipset Intel H110 Express Chipset Memori 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules (Please refer #34;Memory Support List #34; for more information.) Kartu Grafis Terintegrasi Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 1024 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek GbE LAN chip (10/100/1000 Mbit) Slot Tambahan 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slots conform to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots Antarmuka Penyimpanan Chipset: 4 x SATA 6Gb/s connectors USB Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB he
