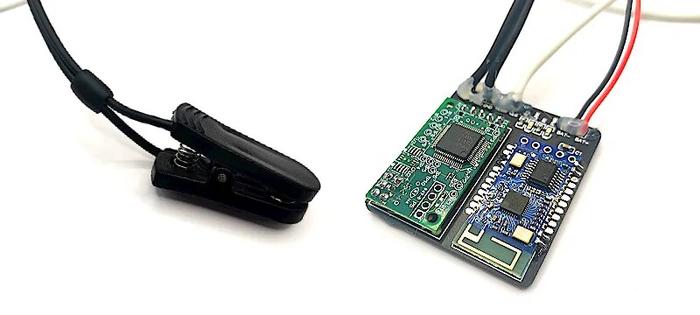

. Arduino Starter Kit Tgam Module For Neurosky Brainwave Eeg Sensor -

Selamat Datang di Toko Kami.

- Kami Menjual Produk-produk Import
- Produk Dikirim dari Luar Negeri.
- Estimasi Kiriman 5-15 Hari. Mohon Menunggu

Camera Equipped : No
State of Assembly : Ready-to-Go
Model Number : Neuro Feedback Kit
Compatibility : Others

Certification : CE

Chip : TGAM
Connect Via : Bluetooth
Function : brainwave feedback,Secondary development
Support platform : Matlab/Pyhton/labview


This product requires your computer's Bluetooth function to work properly, if not, I suggest you buy a bluetooth adapter to make signal more stable. Here is the link.
#

Introduction

With the kit, you could make a Wear BCI device by yourself. You could read the brainwave data from your PC or android Phone.
Support most neurosky softwares on PC and android. Free instructions and SDK sent by email.
The NeuroSky TGAM technoloy provides a powerful foundation for developing applications that promote improved focus, concentration working memory, and mind acuity. Other uses include meditation, relaxation monitoring, and improved educational processes. The low-cost OEM solution is a high-performance bio-signal on a single chip for accurate brain activity detection and processing.

Feature

Direct connect to dry electrode

One EEG channel + Reference + Ground

Extremely low-level signal detection

Advanced filter with high noise immunity

RAW EEG at 512Hz

Data Outputs

RAW EEG Signal

Attention

Meditation

Delta, Theta, low apha, high alpha, low beta, high beta and

gamma waves

Additional algorithms available in SDK


Dimensions:

TGAM1 Module: 27.9 x 15.2 x 2.5mm
TGAT1 Chip: 9 x 9 X 1.6mm
Weight (Max) 130mg
Specifications

512Hz sampling rate at 12 bits
3- 100Hz frequency range
ESD Protection: 4kVDischarge; 8kV Air
Max Power Consumption: 15mA @ 3.3V
Operating voltage 2.97 ~3.63V
UART (Serial):
1200, 9600, 57600 baud
8-bits
No

Silahkan diorder.. :)
