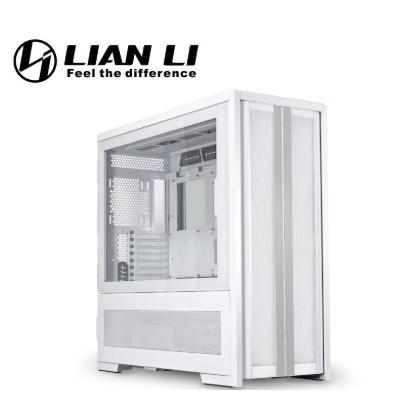

Lian Li V3000 PLUS Full tower Chassis Case PC - Putih

Specifications :


DIMENSIONS
- (D) 678.5mm x (W) 279mm x (H) 674mm

COLOR
- Black
- White

MATERIALS
- Aluminum
- Steel
- 4.0mm Dark Tinted Tempered Glass (right side)
- 4.0mm Tinted Tempered Glass (left side)


MOTHERBOARD SUPPORT
Standard
- EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Rotated
- EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
Dual System
- System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
- System 2 – Mini-ITX

FAN SUPPORT
Standard
- Front：4 x 120mm or 3 x 140mm
- Top：4 x 120mm or 3 x 140mm or 2 x 200mm
- Above PSU Chamber：3 x 120mm or 3 x 140mm
- Bottom side：4 x 120mm or 3 x 140mm
- Rear: 1 x 120mm or 1 x 140mm
Rotated
- Front：4 x 120mm or 3 x 140mm
- Top：4 x 120mm or 3 x 140mm or 2 x 200mm
- Bottom side：4 x 120mm or 3 x 140mm
- Rear: 3 x 120mm or 2 x 140mm
- Above PSU Chamber: 1 x 120mm or 1 x 140mm
Dual System
- Front：4 x 120mm or 3 x 140mm
- Top：4 x 120mm or 3 x 140mm or 2 x 200mm
- Above PSU Chamber：2 x 120mm or 2 x 140mm
- Bottom side：4 x 120mm or 3 x 140mm (without System 2 GPU)
- Rear: 1 x 120mm or 1 x 140mm


RADIATOR SUPPORT
Standard
- Front：480mm or 420mm
- Top：480mm or 420mm
- Above PSU Chamber：360mm or 420mm
- Bottom side：480mm or 420mm
Rotated
- Front：480mm or 420mm
- Top：480mm or 420mm
- Bottom side：480mm or 420mm
- Rear: 360mm or 280mm
Dual System
- Front：480mm or 420mm
- Top：480mm
- Above PSU Chamber：240mm or 280mm
- Bottom side：480mm or 420mm (without System 2 GPU)


PSU SUPPORT
- System 1 : – ATX (Max 220mm)
- System 2 : – SFX-L/SFX


GPU LENGTH CLEARANCE
Standard
- Max 589mm
- Rotated
- Max 358mm
Dual System
- System 1 – Max 589mm
- System 2 – Max 320mm (Width max 125mm)

CPU COOLER HEIGHT CLEARANCE
- System 1 – Max 198mm
- System 2 – Max 80mm

DRIVE SUPPORT
- Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD
- Side：4 × 2.5” SSD
- Behind MB tray: 4 × 2.5” SSD

EXPANSION SLOT
- System 1 – 8
- System 2 – 3 (at PSU shroud, with optional riser cable)

I/O PORTS
System 1
- 1 x Power Button
- 1 x Reset Button
- 1 x Light Color Button (C)
- 1 x Light Mode Button (M)
- 2 x USB 3.0
- 1 x USB Type C
- 1 x Audio
System 2
- 1 x Power Button
- 1 x Reset Button
- 2 x USB 3.0
- 1 x USB Type C
- 1 x Audio

DUST FILTER
- 1 x Bottom


WARRANTY
- 1 year
