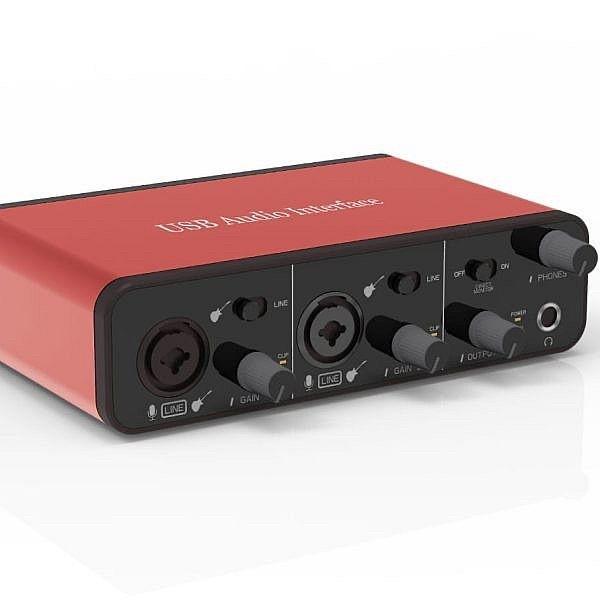

Sound Card RDF USB Audio Interface 2X2 Best

Sampling Precision 16Bit/ 24Bit – ADCDAC
Supported Sample Rates DAC 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
DAC 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Microphone Input
Dynamic Range 95 Db (A-weighted)
Frequency Response 20 Hz to 20 kHz ±1 dB
THD+N 0.01% (1kHz@0dBu)
Noise EIN -110 dBu (A-weighted)
Maximum Input Level +8 dBu at minimum gain
Gain Range 50 dB
Input Impedance 3 kohms
Input
Dynamic Range 95 dB (A-weighted)
Frequency Response 20 Hz to 20 kHz ±1 dB
THD+N 0.01% (1kHz@0dBu)
Maximum Input Level +19 dBu at minimum gain
Gain Range 50 dB
Input Impedance 20 kohms

Physical and Electrical Characteristics
Analogue Input 1 Connector Balanced, via Female 3-pin XLR on front panel
INST mode unbalanced, 2-pole (TS)
LINE mode balanced (TRS)
Phantom Power 48 V phantom power switch on rear panel
/ Instrument switching Front Panel switch
Analogue Input 2
Connector Balanced, via Female 3-pin XLR on front panel
INST mode unbalanced, 2-pole (TS)
LINE mode balanced (TRS)
Phantom Power 48 V phantom power switch on rear panel
/ Instrument switching Front Panel switch
Analogue Outputs
Main outputsBalanced, 2 x 1/4 TRS jacks on rear panel
Stereo headphone output1/4 TRS jack on front panel
Output level control (main) On front panel
Output level control (headphone) On front panel
Direct monitoringFront panel switch; allows zero – latency monitoring of inputs
Other I/O
USB 1X USB 2.0 Type C connector
MIDI 1X MIDI input, 1X MIDI output
Front panel Indicators
POWERRed LED
48V POWERRed LED
SIGGreen LED
CLIPRed LED( Light means audio Signal in the channel is too loud
Weight and Dimensions
L X W X H 175 mm X 120 mm X 47 mm
Weight 470 g
