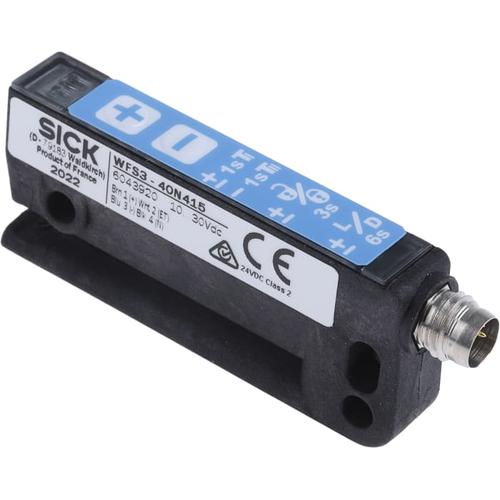

SICK WFS3-40N415 6043920 Sensor Label

Functional principle Optical detection principle
Dimensions (W x H x D) 10 mm x 25 mm x 64.3 mm
Housing design Fork shaped
Fork width 3 mm
Fork depth 42 mm
Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm 1)
Label detection
Light source LED, infrared, Infrared light
Adjustment
Plus/minus button (Teach-in, sensitivity, light/dark switching)
Cable (Teach-in dynamic)
Teach-in mode
2-point teach-in
Teach-in dynamic
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 10 % 2)
Current consumption 20 mA 3)
Switching frequency 10 kHz 4)
Response time 50 µs 5)
Stability of response time ± 20 µs
Jitter 40 µs
Switching output NPN
Switching output (voltage) NPN: HIGH = approx. UV / LOW ≤ 2 V
Switching mode Light/dark switching
Output current Imax. 100 mA
Input, teach-in (ET) Teach: U > 5 V ... < UV
NPN
Teach: U < (UV – 6 V)
Run: U > (UV – 5 V)
Initialization time 20 ms
Connection type Male connector M8, 4-pin
Protection class III
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP65
