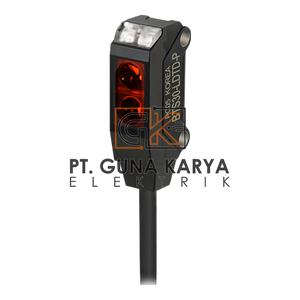

AUTONICS Sensor - Photoelectric Sensor BTS30-LDTD-P
Rp664.700
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Autonics Photoelectric Sensor
AUTONICS Sensor - Photoelectric Sensor BTS30-LDTD-P
Data sheet
Sensing type Convergent reflective type
Sensing distance 5 to 30mm
Sensing target Opaque, Translucent material(min. sensing target: 0.15mm)
Light source Red LED(650nm)
Response time Max. 1ms
Power supply 12-24VDC 10%(ripple P-P: max. 10%)
Current consumption Max. 20mA
Operation mode Dark ON
Control output PNP open collector
Connection type Cable type(2.5, 2m)
Environment_Ambient illumination Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 55, storage: -30 to 70
Protection structure IP67
Approval
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 15% of maximum sensing distance
Material Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304,
Bolt: Carbon steel wire for cold heading(SWCH10A)
Weight Approx. 45g(approx. 25g)
Note : Mohon untuk menanyakan stok terlebih dahulu sebelum membeli.
setiap pembelian barang dari PT Guna Elektrik, akan mendapatkan warranty selama 1 tahun dari tanggal pembelian
Atau Silakan hubungi kami
PT Guna Karya Elektrik (GKE) - AUTONICS Indonesia
Industri, Control, Automation and Electrical Systems
Tangerang - BANTEN
Data sheet
Sensing type Convergent reflective type
Sensing distance 5 to 30mm
Sensing target Opaque, Translucent material(min. sensing target: 0.15mm)
Light source Red LED(650nm)
Response time Max. 1ms
Power supply 12-24VDC 10%(ripple P-P: max. 10%)
Current consumption Max. 20mA
Operation mode Dark ON
Control output PNP open collector
Connection type Cable type(2.5, 2m)
Environment_Ambient illumination Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 55, storage: -30 to 70
Protection structure IP67
Approval
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 15% of maximum sensing distance
Material Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304,
Bolt: Carbon steel wire for cold heading(SWCH10A)
Weight Approx. 45g(approx. 25g)
Note : Mohon untuk menanyakan stok terlebih dahulu sebelum membeli.
setiap pembelian barang dari PT Guna Elektrik, akan mendapatkan warranty selama 1 tahun dari tanggal pembelian
Atau Silakan hubungi kami
PT Guna Karya Elektrik (GKE) - AUTONICS Indonesia
Industri, Control, Automation and Electrical Systems
Tangerang - BANTEN
