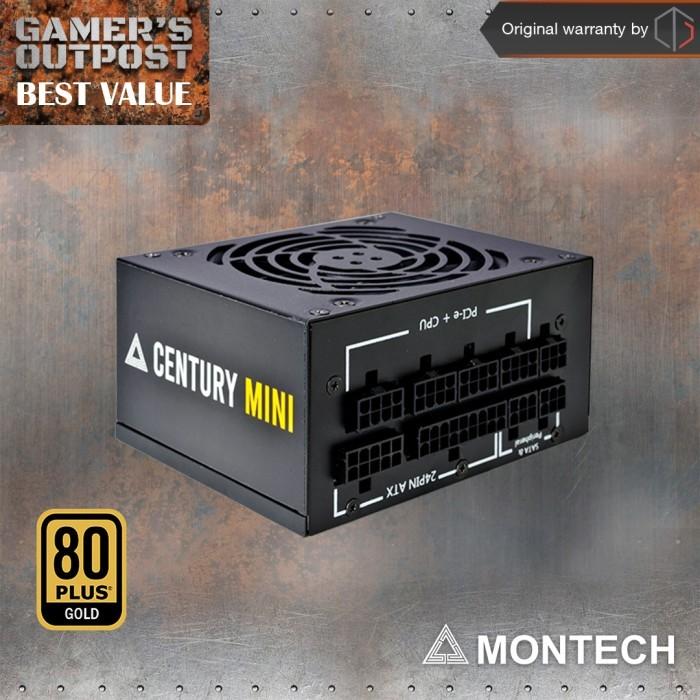

MONTECH CENTURY MINI GOLD 750W 80 Plus Gold Fully Modular SFX PSU

CENTURY MINI GOLD 750W

Small Size, Big Power
​SFX Form Factor
Full Modular Cabling
80 PLUS Gold Certified
100% Japanese High Quality Capacitors
Compatible With Any Case
Seven Year Warranty

SPECIFICATIONS

Product Name
CENTURY MINI 750

Type
Intel SFX12V

Input Voltage
100-240Vac

Input Current
12A

Input Frequency
47-63Hz

Dimensions (LxBxH)
100x125x63.5mm

Fan Size
90mm

MTBF
>100,000 Hours

Operating Temperature
0-45°C

Protections
OPP/ SCP / OTP/ OVP / UVP/OCP

Regulatory
cTUVus / TUV / CB / CE / CCC / RoHS / FCC / UKCA

Connectors
M/B 20+4Pin
1

CPU 4+4Pin
2

PCIE 6+2
4

SATA
6

Molex 4Pin
3

FDD
1

AC INPUT
100-240Vac 47-63Hz 12.0A

DC OUTPUT
+3.3V

+5V

+12V

-12V

+5VSB

Max. Output Current
20A

20A

62.5A

0.3A

2.5A

Max. Output Power
120W

750W

3.6W

12.5W

Total POWER
750W
